XRG250BS-185/10-4P Switch disconnector fuse
MPN: 1SEP204487R3700
Alt. SKU: XRG250BS-185/10-4P
Special Price
£725.38
£604.48
Regular Price
£1,115.96
Why Choose the XRG250BS-185/10-4P [1SEP204487R3700]
Four-pole switch disconnector fuse designed for use with busbars spaced at 185mm and a thickness of 10mm. This device provides reliable isolation and overcurrent protection, ensuring compatibility with standard busbar configurations in industrial and commercial electrical installations.
Technical Specification
- Function: Four pole switch disconnector fuse for busbar connection.
- Rated Voltage: 500 V AC.
- Rated Current: 250 A.
- Contact Configuration: 4 poles (4P).
- Insulation Voltage: 1 kV (Ui).
- Impulse Withstand Voltage: 8 kV (Uimp).
- Busbar Dimensions: 10 mm thickness, 185 mm distance between phases.
- Degree of Protection: Front IP41 (IEC 60529).
- Terminal Type: Bolt connection.
- Standards Compliance: IEC 60947-3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated voltage of the switch disconnector fuse?
The rated voltage is 500 V AC.
What is the rated current for this product?
The rated current is 250 A.
What are the busbar dimensions compatible with this device?
The busbar thickness is 10 mm with a distance of 185 mm between phases.
What is the degree of protection for this switch disconnector?
The degree of protection is IP41 (IEC 60529).
What type of terminal connection does this product use?
This product uses a bolt connection for terminals.
What standards does this switch disconnector comply with?
It complies with IEC 60947-3. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SEP204487R3700 |
|---|---|
| Packed Quantity | 1 |
| Height | 150mm |
| Width | 590mm |
| Depth | 335mm |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | XRG250BS-185/10-4P |
| Barcode | 3800161651519 |

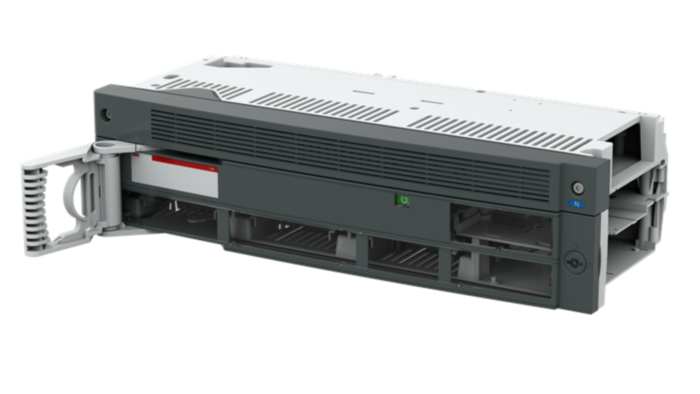

| Product Image | For Illustration Purposes Only |
