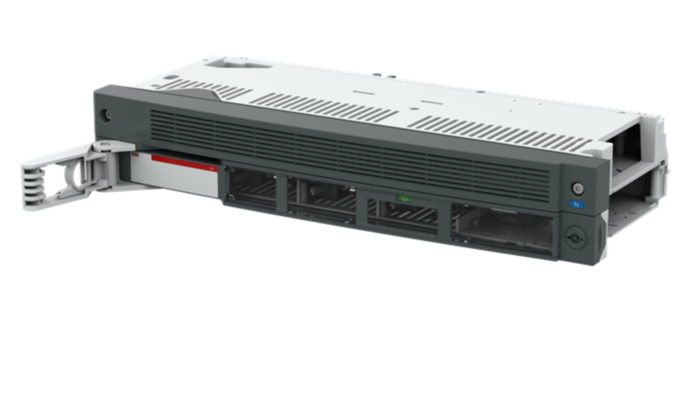

XRG160BS-185/10-4P Switch disconnector fuse
MPN: 1SEP204486R3700
Alt. SKU: XRG160BS-185/10-4P
Special Price
£593.34
£494.45
Regular Price
£912.83
Why Choose the XRG160BS-185/10-4P [1SEP204486R3700]
Four-pole switch disconnector fuse designed for use with busbars spaced 185mm apart and up to 10mm in thickness. This unit provides reliable isolation and overcurrent protection, ensuring compatibility with standard busbar configurations in industrial and commercial electrical installations.
Technical Specification
- Function: Four pole switch disconnector fuse.
- Rated Operational Voltage: 500 V AC.
- Rated Current (In): 160 A.
- Contact Configuration: 4 poles (4P).
- Rated Insulation Voltage (Ui): 1 kV.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP41 (IEC 60529).
- Busbar Dimensions: 185 mm phase distance, 10 mm thickness.
- Terminal Type: Bolt.
- Operating Mode: Manual.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the switch disconnector fuse?
The rated operational voltage is 500 V AC.
What is the rated current for this product?
The rated current is 160 A.
What is the contact configuration of the switch disconnector fuse?
The contact configuration is four poles (4P).
What are the busbar dimensions compatible with this product?
The compatible busbar dimensions are 185 mm phase distance and 10 mm thickness.
What is the degree of protection for this switch disconnector?
The degree of protection is Front IP41 (IEC 60529).
What type of terminal does this product use?
The terminal type is bolt.
What is the operating mode of the switch disconnector fuse?
The operating mode is manual.
| Manufacturer Part Number | 1SEP204486R3700 |
|---|---|
| Packed Quantity | 1 |
| Height | 100mm |
| Width | 590mm |
| Depth | 335mm |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | XRG160BS-185/10-4P |
| Barcode | 3800161650949 |
| Product Image | For Illustration Purposes Only |
