XLP00-MNS adapter-3BC Fuse Switch Disconnector
MPN: 1SEP101890R0402
Alt. SKU: XLP00-MNS adapter-3BC
Special Price
£307.50
£256.25
Regular Price
£473.08
Why Choose the XLP00-MNS adapter-3BC [1SEP101890R0402]
The XLP00 is a 3-pole, 160A connector designed for robust electrical installations. It includes an MNS adapter and three bridge clamps, ensuring secure and reliable connections. This configuration is compatible with standard MNS systems, facilitating seamless integration and efficient current distribution in industrial and commercial applications.
Technical Specification
- Function: Fuseswitch disconnector with 3-pole configuration.
- Rated Current: 160 A.
- Rated Voltage: 500 V AC / 690 V AC.
- Fuse Size Compatibility: NH00, NH000 (DIN fuse system).
- Rated Conditional Short-Circuit Current (Icn): 50 kA RMS at 690 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP30.
- Terminal Type: Cable clamp.
- Mounting Type: 50 mm busbar system.
- Power Loss at Rated Load: 3.5 W.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the XLP00?
The XLP00 is a fuseswitch disconnector with a 3-pole configuration.
What is the rated current and voltage for the XLP00?
The rated current is 160 A, and the rated voltage is 500 V AC / 690 V AC.
What fuse sizes are compatible with the XLP00?
It is compatible with NH00 and NH000 sizes in the DIN fuse system.
What is the rated conditional short-circuit current for the XLP00?
The rated conditional short-circuit current (Icn) is 50 kA RMS at 690 V.
What is the degree of protection for the XLP00?
The degree of protection is IP30.
What type of terminal does the XLP00 use?
The terminal type is a cable clamp.
How is the XLP00 mounted?
It is designed for mounting on a 50 mm busbar system.
| Manufacturer Part Number | 1SEP101890R0402 |
|---|---|
| Packed Quantity | 1 |
| Height | 187mm |
| Width | 105mm |
| Depth | 210mm |
| HS Code | 85365019 |
| Amperage | 160A |
| Number of Poles | 3 Pole |
| Country of Manufacture | Bulgaria |
| Manufacturer | ABB |
| Alternative Product SKU | XLP00-MNS adapter-3BC |
| Barcode | 7025840023289 |

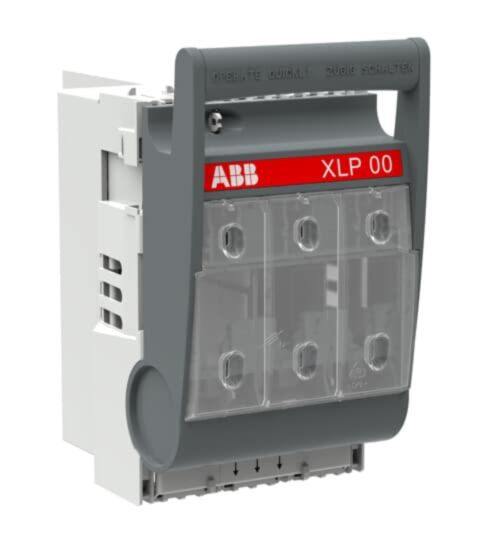

| Product Image | For Illustration Purposes Only |
