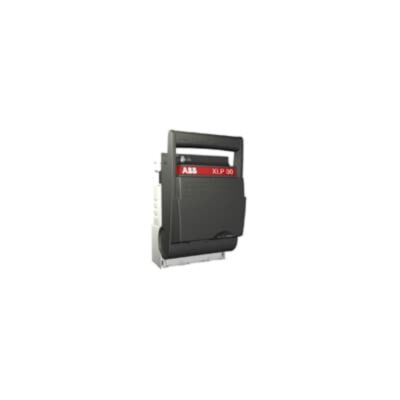

XLP00-EFM-6BC Fuse Switch Disconnector
MPN: 1SEP101890R0012
Alt. SKU: XLP00-EFM-6BC
Special Price
£203.74
£169.78
Regular Price
£313.44
Why Choose the XLP00-EFM-6BC [1SEP101890R0012]
The XLP00 is a 3-pole, 160A device featuring integrated Electronic Fuse Monitoring for enhanced safety and fault detection. It includes six bridge clamps to ensure secure and reliable electrical connections, making it suitable for robust industrial and commercial applications.
Technical Specification
- Type: 3-pole fuse switch disconnector with electronic fuse monitoring.
- Rated Current (In): 160 A.
- Rated Operational Voltage (Ur): Up to 1000 V AC.
- Rated Conditional Short-Circuit Current (Icn): 50 kA RMS at 690 V.
- Fuse Size Compatibility: NH00, NH000 according to DIN standard.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP30.
- Terminal Type: Cable clamp.
- Mounting: Baseplate with front cover handle.
- Power Loss at Rated Load: 3.5 W.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the XLP00 fuse switch disconnector?
The rated current of the XLP00 fuse switch disconnector is 160 A.
What is the maximum operational voltage for this product?
The maximum operational voltage is up to 1000 V AC.
Which fuse sizes are compatible with the XLP00?
The XLP00 is compatible with NH00 and NH000 fuse sizes according to DIN standard.
What is the degree of protection for the XLP00?
The degree of protection is IP30.
How is the XLP00 mounted?
The XLP00 is mounted on a baseplate with a front cover handle.
What is the power loss at rated load for this product?
The power loss at rated load is 3.5 W.
What are the short-circuit current ratings for the XLP00?
The rated conditional short-circuit current is 50 kA RMS at 690 V.
| Manufacturer Part Number | 1SEP101890R0012 |
|---|---|
| Packed Quantity | 1 |
| Height | 187mm |
| Width | 105mm |
| Depth | 100mm |
| HS Code | 85365019 |
| Amperage | 160A |
| Number of Poles | 3 Pole |
| Country of Manufacture | Bulgaria |
| Manufacturer | ABB |
| Alternative Product SKU | XLP00-EFM-6BC |
| Barcode | 7025840013433 |
