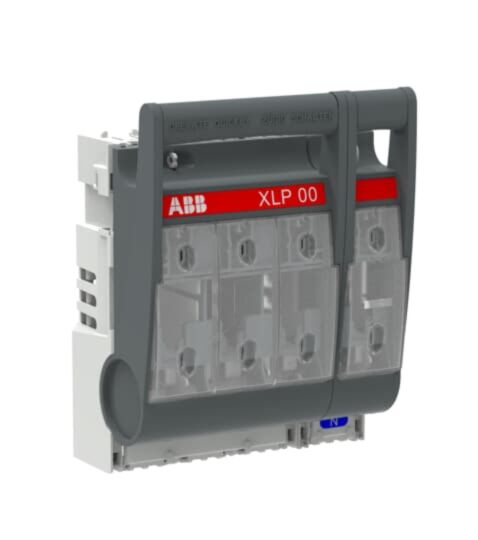

XLP00-4P-8M8 Fuse Switch Disconnector
MPN: 1SEP600115R0003
Alt. SKU: XLP00-4P-8M8
Special Price
£181.02
£150.85
Regular Price
£278.48
Why Choose the XLP00-4P-8M8 [1SEP600115R0003]
XLP00 is a 4-pole connector rated at 160A, supplied complete with eight M8 mounting bolts. Designed for secure and reliable electrical connections, it is suitable for industrial and commercial applications requiring robust current handling and straightforward installation.
Technical Specification
- Function: 4-pole fuse switch disconnector.
- Rated Current: 160 A.
- Rated Voltage: 500 V AC.
- Rated Conditional Short-Circuit Current (Icn): 50 kA at 690 V.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP30.
- Terminal Type: Bolt, M8 size (includes 8 x M8 bolts).
- Mounting Type: Baseplate.
- Power Loss at Rated Load: 3.5 W.
- Standards: IEC 60947-3, GB/T 14048.3.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the XLP00 fuse switch disconnector?
The rated current is 160 A.
What is the maximum rated voltage for this product?
The maximum rated voltage is 500 V AC.
What type of mounting does the XLP00 require?
The mounting type is baseplate.
What is the degree of protection for the XLP00?
The degree of protection is IP30.
What is the impulse withstand voltage of this product?
The impulse withstand voltage is 8 kV.
What is the terminal type and size for the XLP00?
The terminal type is bolt, M8 size, and it includes 8 x M8 bolts.
What standards does the XLP00 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SEP600115R0003 |
|---|---|
| Packed Quantity | 1 |
| Height | 88mm |
| Width | 145mm |
| Depth | 185mm |
| HS Code | 85369095 |
| Amperage | 160A |
| Number of Poles | 4 Pole |
| Country of Manufacture | China |
| Manufacturer | ABB |
| Alternative Product SKU | XLP00-4P-8M8 |
| Barcode | 7025840086567 |
