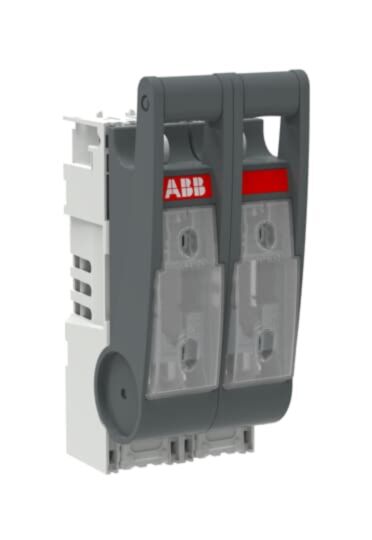

XLP00-2P-4BC Fuse Switch Disconnector
MPN: 1SEP600114R0002
Alt. SKU: XLP00-2P-4BC
Special Price
£106.14
£88.45
Regular Price
£163.28
Why Choose the XLP00-2P-4BC [1SEP600114R0002]
The XLP00 is a 2-pole, 160A rated device supplied complete with four bridge clamps. Designed for secure and reliable electrical connections, it ensures consistent performance in demanding installations. Its robust construction and compatibility with standard busbar systems make it suitable for a wide range of commercial and industrial applications.
Technical Specification
- Function: 2-pole fuse switch disconnector with 4 bridge clamps included.
- Rated Current: 160 A.
- Rated Voltage: 220 V DC / 500 V AC / 690 V AC.
- Fuse Size: NH00, NH000 (DIN system).
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP30.
- Terminal Type: Cable clamps.
- Mounting Type: Baseplate.
- Short-Circuit Current Rating: 50 kA rms at 690 V.
- Power Loss at Rated Load: 3.5 W.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the XLP00 fuse switch disconnector?
The rated current is 160 A.
What types of fuses are compatible with the XLP00?
The XLP00 is compatible with NH00 and NH000 fuses (DIN system).
What is the degree of protection for this product?
The degree of protection is IP30.
How is the XLP00 mounted?
The XLP00 is mounted on a baseplate.
What is the short-circuit current rating of the XLP00?
The short-circuit current rating is 50 kA rms at 690 V.
What is the power loss at rated load for the XLP00?
The power loss at rated load is 3.5 W.
What are the voltage ratings for the XLP00?
The rated voltage is 220 V DC / 500 V AC / 690 V AC.
| Manufacturer Part Number | 1SEP600114R0002 |
|---|---|
| Packed Quantity | 1 |
| Height | 88mm |
| Width | 80mm |
| Depth | 185mm |
| HS Code | 85369095 |
| Amperage | 160A |
| Number of Poles | 2 Pole |
| Country of Manufacture | China |
| Manufacturer | ABB |
| Alternative Product SKU | XLP00-2P-4BC |
| Barcode | 7025840086529 |
