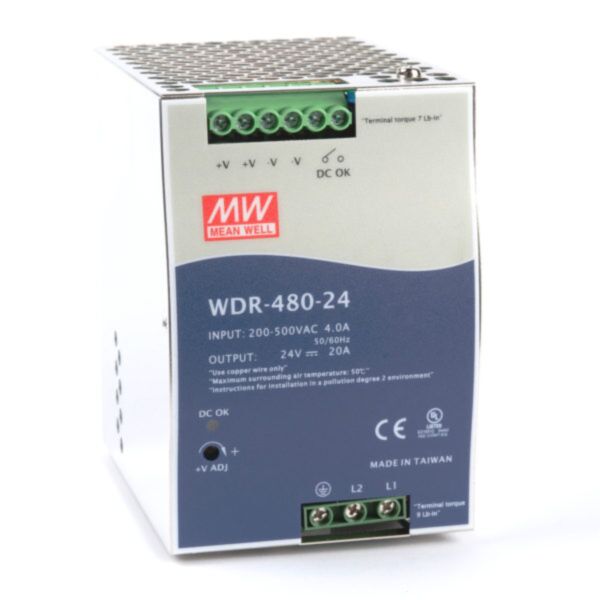

WDR-480-24 Power Supply 1ph and 3ph in input, output 24 volts DC 20.0 Amps

Why Choose the Mean Well WDR-480-24 DIN Rail Power Supply?

The Mean Well WDR-480-24 is a robust, wide input range 480W DIN rail power supply engineered for industrial automation, process control, and critical panel applications. Delivering a reliable 24V DC output at 20A, it features ultra-wide AC/DC input compatibility, high efficiency, advanced protections, and a slim DIN rail format—making it ideal for demanding and global environments.

Key Takeaways

• Output: 24V DC at 20A (480W)
• Ultra-wide input voltage: 180–550V AC (single/three-phase) / 254–780V DC
• High efficiency up to 92%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Slim metal case: 85.5mm width
• Operating temperature: -30°C to +70°C
• Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE

Frequently Asked Questions About the Mean Well WDR-480-24

• What is the output voltage and current of the WDR-480-24?
• What input voltages does it support?
• What protection features are included?
• How is the unit cooled?
• How is it mounted?

Mean Well WDR-480-24 Overview

The WDR-480-24 is part of Mean Well’s advanced WDR series, designed for high flexibility and performance in automation and control systems. With a 24V DC at 20A output, ultra-wide input range, and comprehensive protections, it guarantees reliable operation even under unstable supply conditions. DIN rail mounting ensures easy integration into modern panels and enclosures.

Speed & Safety Benefits

• Quick installation: Slim DIN rail design streamlines integration and saves panel space
• Enhanced safety: Advanced protection suite safeguards both equipment and personnel
• Global flexibility: Ultra-wide input range enables use in diverse regions and with fluctuating mains supplies

Key Features of the Mean Well WDR-480-24

• Output: 24V DC at 20A (480W)
• Ultra-wide input voltage: 180–550V AC (single/three-phase) / 254–780V DC
• High efficiency up to 92%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Slim metal case: 85.5mm width
• Operating temperature: -30°C to +70°C
• Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE

Choose the Mean Well WDR-480-24 DIN Rail Power Supply for wide input flexibility, robust safety, and dependable 24V power in your automation and industrial projects.
