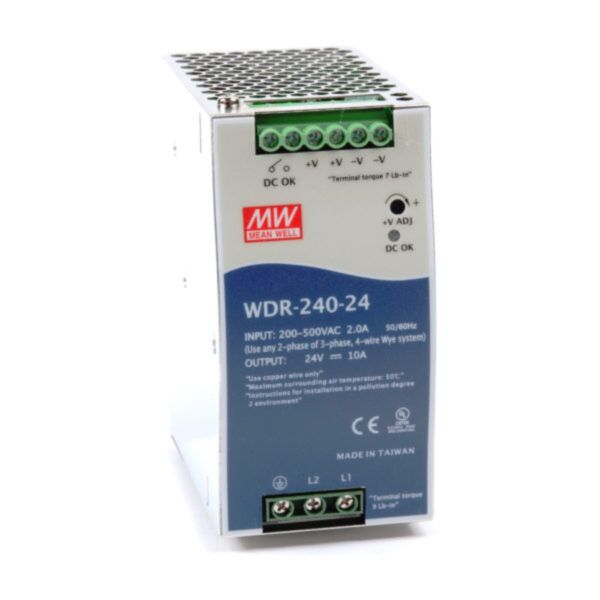

WDR-240-24 Power Supply 1ph and 3ph in input, output 24 volts DC 10 Amps

Why Choose the Mean Well WDR-240-24 DIN Rail Power Supply?

The Mean Well WDR-240-24 is a wide input range, 240W DIN rail power supply designed for industrial automation, building management, and demanding panel applications. Delivering a stable 24V DC output at 10A, this unit features ultra-wide input compatibility, robust protections, high efficiency, and a slim DIN rail format—making it ideal for both new installations and global retrofits.

Key Takeaways

• Output: 24V DC at 10A (240W)
• Ultra-wide input voltage: 180–550V AC (single/three-phase) / 254–780V DC
• High efficiency up to 91.5%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Slim metal case: 63mm width
• Operating temperature: -30°C to +70°C
• Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE

Frequently Asked Questions About the Mean Well WDR-240-24

• What is the output voltage and current of the WDR-240-24?
• What input voltages does it support?
• What protection features are included?
• How is the unit cooled?
• How is it mounted?

Mean Well WDR-240-24 Overview

The WDR-240-24 is part of Mean Well’s trusted WDR series, built for wide input flexibility and reliable 24V power in modern control panels. With a slim profile and advanced safety features, this model supports global industrial and automation projects—offering efficiency, dependability, and straightforward DIN rail integration.

Speed & Safety Benefits

• Quick installation: Slim DIN rail mounting saves valuable panel space and streamlines setup
• Enhanced safety: Short circuit, overload, over voltage, and over temperature protection for both equipment and users
• Global flexibility: Ultra-wide input voltage supports global applications and unstable mains conditions

Key Features of the Mean Well WDR-240-24

• Output: 24V DC at 10A (240W)
• Ultra-wide input voltage: 180–550V AC (single/three-phase) / 254–780V DC
• High efficiency up to 91.5%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Slim metal case: 63mm width
• Operating temperature: -30°C to +70°C
• Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE

Choose the Mean Well WDR-240-24 DIN Rail Power Supply for wide input flexibility, robust safety, and reliable 24V power in industrial and automation environments.
