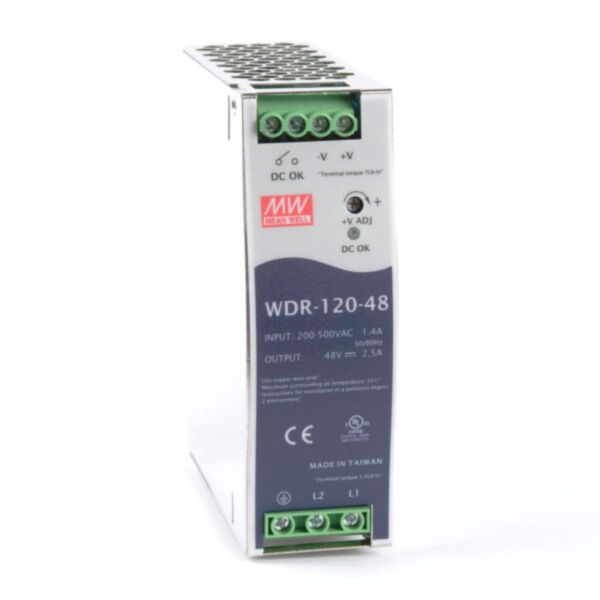

WDR-120-48 Power Supply 1ph and 3ph in input, output 48 volts DC 2.5 Amps

Why Choose the Mean Well WDR-120-48 DIN Rail Power Supply?

The Mean Well WDR-120-48 is a wide input range, 120W DIN rail power supply engineered for industrial automation, process control, and building management systems. Delivering a steady 48V DC output at 2.5A, it features an ultra-wide AC input range, robust protection mechanisms, high efficiency, and a slim DIN rail form factor—making it an ideal solution for reliable power in global and challenging environments.

Key Takeaways

• Output: 48V DC at 2.5A (120W)
• Ultra-wide input voltage: 180–550V AC (single/three-phase) / 254–780V DC
• High efficiency up to 89%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Slim metal case: 40mm width
• Operating temperature: -30°C to +70°C
• Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE

Frequently Asked Questions About the Mean Well WDR-120-48

• What is the output voltage and current of the WDR-120-48?
• What input voltages does it support?
• What protection features are included?
• How is the unit cooled?
• How is the unit mounted?

Mean Well WDR-120-48 Overview

The WDR-120-48 is part of Mean Well’s globally trusted WDR series, designed for wide input voltage ranges and maximum flexibility in panel and automation projects. Its 48V DC at 2.5A output, compact housing, and comprehensive protection suite ensure long-term reliability, even in regions with unstable or extreme mains conditions.

Speed & Safety Benefits

• Quick installation: Slim DIN rail mounting makes integration fast and space-efficient
• Enhanced safety: Full protection suite ensures safety for both personnel and equipment
• Global flexibility: Ultra-wide input range supports installation in diverse international locations

Key Features of the Mean Well WDR-120-48

• Output: 48V DC at 2.5A (120W)
• Ultra-wide input voltage: 180–550V AC (single/three-phase) / 254–780V DC
• High efficiency up to 89%
• Protections: Short circuit, overload, over voltage, over temperature
• Cooling by free air convection
• DIN rail mountable (TS35/7.5 or TS35/15)
• Slim metal case: 40mm width
• Operating temperature: -30°C to +70°C
• Compliance: UL508, EN61000-6-2, EN61000-6-4, TUV EN62368-1, CE

Choose the Mean Well WDR-120-48 DIN Rail Power Supply for reliable, flexible, and globally compatible 48V power in your industrial and automation projects.
