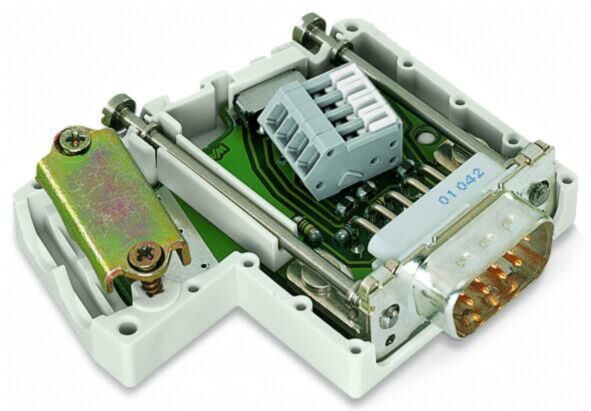

Wago 750-960 Connector Profibus, With D-Sub Male Connector 9-Pole Light Gray

Why Choose the WAGO 750-960 Bus End Module?

The WAGO 750-960 is a bus end module designed for use with the WAGO I/O System 750. It provides electrical termination for the internal I/O bus at the end of a modular automation node, ensuring reliable communication and stable operation across connected I/O modules.

Within distributed automation systems, modular I/O stations are assembled by combining a controller or fieldbus coupler with multiple digital or analogue I/O modules. The 750-960 bus end module is installed at the end of the node to complete the internal communication bus and maintain correct system functionality.

The compact DIN-rail device is easy to install and ensures the I/O system operates reliably in industrial environments. Its use is required whenever a WAGO I/O station is assembled to guarantee proper bus termination and system integrity.

Key Advantages

• Provides bus termination for WAGO I/O System 750 nodes.
• Ensures reliable communication across connected I/O modules.
• Required component for completing modular I/O assemblies.
• Compact design for installation in DIN-rail control cabinets.
• Supports stable operation of distributed automation systems.
• Simple installation with the WAGO modular I/O architecture.

Key Features

• Bus end module for WAGO I/O System 750.
• Terminates the internal communication bus of an I/O station.
• Required at the end of every modular I/O assembly.
• Compact DIN-rail mounting design.
• Maintenance-free operation.
• Designed for industrial automation environments.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-960
• Product type: Bus end module
• Function: I/O system bus termination
• Compatibility: WAGO I/O System 750 modules
• Mounting: DIN rail
• Protection rating: IP20
• Operating temperature: approx. 0 °C to +55 °C

Completing Modular I/O Stations

In modular automation systems, I/O nodes are built by combining fieldbus couplers or controllers with digital and analogue I/O modules. The WAGO 750-960 bus end module must be installed at the end of the node to terminate the internal bus and ensure stable data communication across all connected modules.

The WAGO I/O System 750 is widely used in industrial automation, process control and building automation systems because it provides a flexible and scalable architecture for connecting sensors, actuators and control equipment.

Typical Applications

• Termination of modular WAGO I/O stations.
• Industrial automation control cabinets.
• Distributed PLC and remote I/O systems.
• Machine automation and process control systems.
• Building automation and infrastructure control.

Trusted by Automation Engineers

WAGO modular I/O components are widely used by automation engineers and system integrators to build reliable distributed control systems across industrial and infrastructure applications.
