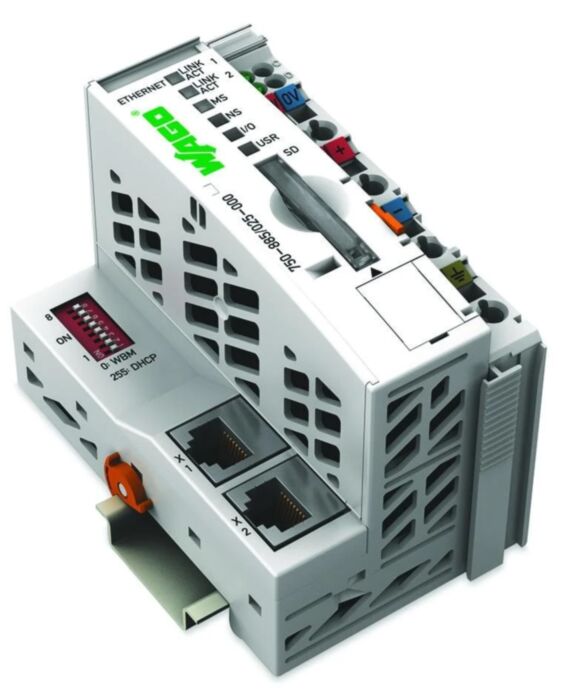

Wago 750-885/025-000 Controller Ethernet, G3 Sd Mr T

Why Choose the WAGO 750-885/025-000 Ethernet Controller?

The WAGO 750-885/025-000 is a high-performance 3rd-generation Ethernet programmable controller designed for distributed industrial automation using the modular WAGO I/O System 750. This DIN-rail PLC combines PLC processing, Ethernet communication and modular I/O connectivity in a single compact device, enabling scalable control architectures for manufacturing, process automation and machine control systems.

The controller provides dual Ethernet interfaces supporting media redundancy, allowing it to operate on two separate networks with independent IP addresses. This redundancy ensures reliable communication paths and improved system availability in critical automation environments. :contentReference

Designed for flexible automation integration, the controller supports all digital, analogue and speciality modules from the WAGO 750/753 Series. It also includes a removable SD/SDHC memory card slot for program storage, data logging and system backup, simplifying maintenance and configuration management. :contentReference

Key Advantages

• Industrial Ethernet PLC controller for distributed automation systems.
• Media redundancy support using two logically separated Ethernet networks.
• Compatible with the complete WAGO 750 / 753 Series modular I/O platform.
• Integrated SD / SDHC memory card slot for program and data storage.
• Local PLC processing reduces communication load on industrial networks.
• Supports high-speed 10/100 Mbit/s Ethernet communication.

Key Features

• Ethernet programmable controller (3rd generation).
• 2 × RJ-45 Ethernet interfaces with Auto-Negotiation and Auto-MDI(X).
• Supports Modbus TCP, Modbus UDP and EtherNet/IP communication.
• 32-bit CPU for multitasking PLC processing.
• Integrated web server for configuration, monitoring and diagnostics.
• SD / SDHC memory card slot for program storage and data management.
• Supports IEC 61131-3 programming languages.
• DIN-rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-885/025-000
• Product type: Ethernet programmable controller
• Controller generation: 3rd generation
• Processor: 32-bit CPU
• Program memory: 1024 kB
• Data memory: 1024 kB
• Non-volatile memory: 32 kB
• Memory expansion: SD / SDHC card slot (up to 32 GB)
• Communication protocols: EtherNet/IP, Modbus TCP, Modbus UDP
• Ethernet protocols: HTTP, BootP, DHCP, DNS, SNTP, FTP, SNMP
• Ethernet interfaces: 2 × RJ-45 (10/100 Mbit/s)
• Supply voltage: 24 V DC (−25% to +30%)
• Maximum I/O modules: up to 250 modules (64 without bus extension)
• Process image: up to 1020 words input / 1020 words output
• Operating temperature: approx. −20 °C to +60 °C (extended temperature version)
• Mounting: DIN rail (35 mm)
• Protection rating: IP20

Industrial Ethernet Automation Connectivity

Industrial Ethernet controllers allow PLC systems to exchange real-time process data with field devices, remote I/O stations and supervisory automation platforms. The WAGO 750-885/025-000 controller integrates Ethernet networking with PLC control functionality, enabling distributed automation architectures where local controllers manage machine processes while communicating with higher-level SCADA systems. :contentReference

Through the modular architecture of the WAGO I/O System 750, engineers can expand the controller with digital inputs, analogue modules and specialised communication interfaces to create scalable automation solutions for machine automation, energy systems and process control applications.

Typical Applications

• Industrial machine automation systems.
• Distributed PLC and remote I/O architectures.
• Ethernet-based industrial communication networks.
• Manufacturing process control and monitoring.
• SCADA-connected automation and data acquisition systems.
