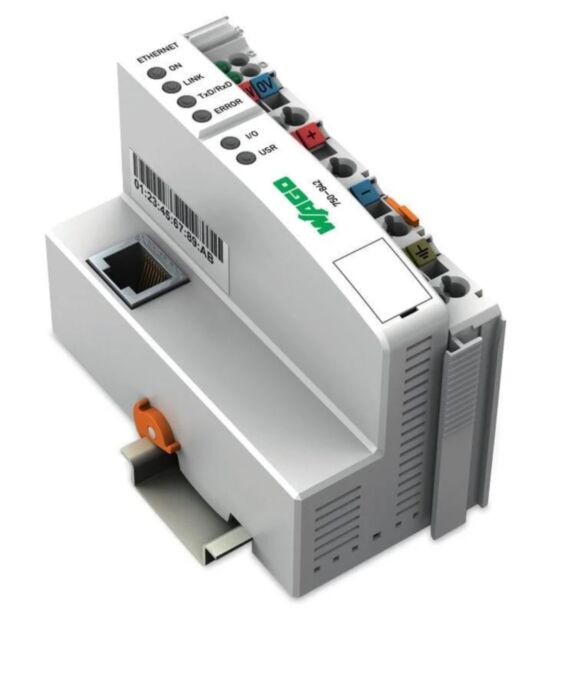

Wago 750-842 Controller Ethernet, G1

Why Choose the WAGO 750-842 Ethernet Controller?

The WAGO 750-842 is a compact Ethernet programmable controller designed for decentralised industrial automation using the modular WAGO I/O System 750. This DIN-rail PLC combines control functionality, I/O interfacing and Ethernet communication in a single device, enabling efficient implementation of distributed automation architectures. :contentReference

The controller communicates via Ethernet TCP/IP and supports protocols such as Modbus TCP, Modbus UDP and HTTP. By executing PLC logic locally while communicating with higher-level systems, the controller allows complex industrial processes to be divided into modular, independently testable control functions. :contentReference

Using IEC 61131-3 programming standards and the WAGO-I/O-PRO engineering environment, automation engineers can develop flexible control programs to manage sensors, actuators and distributed I/O modules connected to the WAGO 750 Series platform. :contentReference

Key Advantages

• Reliable Ethernet PLC controller for distributed automation systems.
• Combines control logic, I/O interface and Ethernet communication in one device.
• Supports IEC 61131-3 PLC programming for flexible automation development.
• Local signal processing reduces network communication load.
• Direct control of peripheral devices for faster system response.
• Compatible with the modular WAGO I/O System 750.

Key Features

• Ethernet TCP/IP programmable controller.
• RJ-45 Ethernet interface for industrial network connectivity.
• Supports communication protocols including Modbus TCP, Modbus UDP and HTTP.
• 16-bit CPU for PLC processing.
• 128 kB program memory and 64 kB RAM.
• Diagnostic LEDs for device and network status.
• DIN-rail mounting for industrial control panels.
• Expandable using WAGO digital and analogue I/O modules.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-842
• Product type: Ethernet programmable controller
• Processor: 16-bit CPU
• Program memory: 128 kB
• Data memory: 64 kB
• Non-volatile memory: 8 kB
• Programming standard: IEC 61131-3
• Programming environment: WAGO-I/O-PRO (CODESYS based)
• Communication protocols: Modbus TCP, Modbus UDP, HTTP, BootP
• Ethernet interface: RJ-45, 10 Mbit/s
• Supply voltage: 24 V DC (−25% to +30%)
• Maximum I/O modules: up to 64 modules per node
• Process image: up to 512 bytes input / 512 bytes output
• Operating temperature: 0 °C to +55 °C
• Mounting: DIN rail
• Protection rating: IP20

Industrial Ethernet Automation Connectivity

Industrial Ethernet technologies allow PLC controllers to exchange process data rapidly across factory networks. The WAGO 750-842 Ethernet controller integrates Ethernet communication with PLC control capabilities, enabling machines and field devices to be connected to higher-level control systems or SCADA platforms. :contentReference

Using the modular WAGO I/O System 750, engineers can expand the controller with digital inputs, analogue modules and speciality communication modules to build scalable industrial automation solutions tailored to machine control, process automation and distributed monitoring applications.

Typical Applications

• Industrial machine automation systems.
• Distributed PLC and remote I/O architectures.
• Manufacturing equipment and production line control.
• Process monitoring and industrial data acquisition.
• Ethernet-connected automation networks.

Trusted by Automation Engineers

WAGO Ethernet controllers are widely used by system integrators and machine builders to implement reliable distributed automation systems with Ethernet communication and modular I/O expansion.
