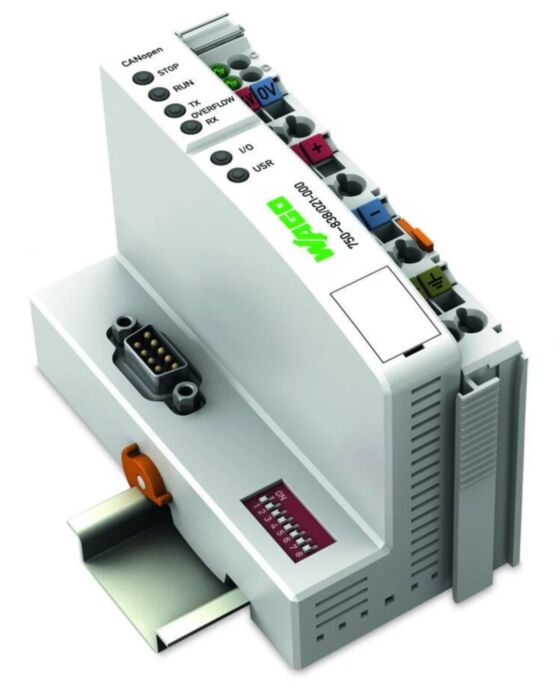

Wago 750-838/021-000 Controller Canopen, M3 Dsub

Why Choose the WAGO 750-838/021-000 CANopen Controller?

The WAGO 750-838/021-000 is a compact CANopen programmable controller designed for decentralised automation systems using the modular WAGO I/O System 750. This DIN-rail PLC integrates fieldbus communication, local control processing and modular I/O connectivity in one device, allowing distributed machine control architectures to be implemented efficiently.

Using the CANopen fieldbus protocol, the controller exchanges data with automation networks while executing local PLC logic. Processing signals locally helps reduce communication load across the network while improving system responsiveness and reliability in industrial environments. :contentReference

The controller supports IEC 61131-3 programming languages and can be programmed using environments such as WAGO-I/O-PRO (CODESYS based). Engineers can access all fieldbus and I/O data within the program environment, enabling flexible automation control for machines, process equipment and distributed I/O installations. :contentReference

Key Advantages

• Reliable CANopen programmable controller for distributed automation.
• Combines PLC logic, fieldbus communication and modular I/O connectivity in one device.
• Supports IEC 61131-3 programming languages for flexible automation logic.
• Local signal processing reduces fieldbus traffic and improves response times.
• Allows decentralised control nodes within larger PLC systems.
• Compatible with the complete WAGO I/O System 750 platform.

Key Features

• CANopen programmable fieldbus controller.
• 16-bit CPU for PLC processing.
• 640 kB program memory and 832 kB data memory.
• Supports IEC 61131-3 languages including LD, FBD, ST and SFC.
• D-Sub 9 CANopen communication interface.
• Programmable response for fieldbus failure conditions.
• Diagnostic LEDs for device and communication status.
• DIN-rail mounting for control cabinet installation.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-838/021-000
• Product type: CANopen programmable controller
• Processor: 16-bit CPU
• Program memory: 640 kB
• Data memory: 832 kB
• Programming standard: IEC 61131-3
• Programming software: WAGO-I/O-PRO
• Supply voltage: 24 V DC (−25% to +30%)
• Communication protocol: CANopen
• Baud rate: 10 kbit/s to 1 Mbit/s
• Maximum nodes on CANopen network: up to 110
• Maximum I/O modules per node: up to 64
• Operating temperature: 0 °C to +55 °C
• Mounting: DIN rail
• Protection rating: IP20

Industrial CANopen Automation Connectivity

CANopen is widely used in machine automation and industrial networking for deterministic real-time communication. The WAGO 750-838/021-000 controller integrates this protocol with PLC functionality, allowing automation engineers to implement distributed control systems where signals are processed directly at the field level rather than relying entirely on a central controller. :contentReference

Through the modular WAGO I/O System 750, engineers can connect digital inputs, analogue signals, communication modules and speciality automation modules to build scalable industrial control systems suited to machine automation, production lines and process monitoring. :contentReference

Typical Applications

• Distributed machine automation systems.
• Industrial process control and monitoring.
• Integration of sensors and actuators via CANopen networks.
• Manufacturing equipment and production line control.
• Decentralised PLC control nodes in larger automation architectures.

Trusted by Automation Engineers

WAGO CANopen controllers are widely used in distributed automation systems to deliver reliable field-level control and communication in modern industrial installations.
