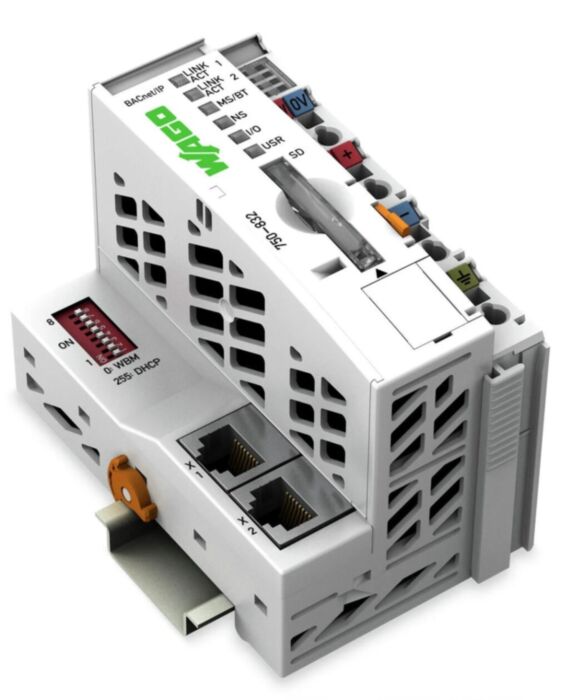

Wago 750-832 Controler BACnet/IP G4

Why Choose the WAGO 750-832 BACnet/IP Controller?

The WAGO 750-832 is a powerful BACnet/IP programmable controller designed for building automation and distributed control systems using the WAGO I/O System 750. This 4th-generation controller enables seamless integration of digital and analogue I/O modules into BACnet networks commonly used in HVAC, lighting and building management applications.

Supporting the B-BC (BACnet Building Controller) device profile according to DIN EN ISO 16484-5, the controller communicates with other BACnet devices via BACnet/IP, providing reliable interoperability within building automation infrastructures. The controller automatically generates BACnet objects for connected I/O channels, simplifying system configuration and integration. :contentReference

Equipped with two Ethernet interfaces and an integrated switch, the controller supports line-topology networking without additional switches or hubs. An integrated web server provides diagnostics, configuration and monitoring functions directly through a web browser. :contentReference

Key Advantages

• Reliable BACnet/IP controller for building automation systems.
• Supports B-BC BACnet device profile according to DIN EN ISO 16484-5.
• Automatic generation of BACnet objects for connected I/O modules.
• Two Ethernet interfaces with integrated switch for line topology networking.
• Compatible with the complete WAGO I/O System 750 modular platform.
• Integrated web server for configuration, diagnostics and monitoring.

Key Features

• BACnet/IP programmable controller.
• 4th-generation WAGO controller architecture.
• 2 × Ethernet RJ45 interfaces with integrated switch.
• 32-bit CPU with multitasking capability.
• Integrated SD / SDHC memory card slot for data storage and configuration transfer.
• Supports IEC 61131-3 programming languages.
• Web-based management and diagnostics.
• Compatible with WAGO digital and analogue I/O modules.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-832
• Product type: BACnet/IP programmable controller
• Controller generation: 4th generation
• Processor: 32-bit CPU
• Programming standard: IEC 61131-3
• Supply voltage: 24 V DC
• Ethernet interfaces: 2 × RJ45 (10 / 100 Mbit/s)
• Network protocols: BACnet/IP, Modbus TCP/UDP, HTTP(S), SNTP, FTP, SNMP
• Program memory: approx. 8 MB
• Data memory: approx. 8 MB
• Memory expansion: SD / SDHC card slot
• Maximum modules per node: up to 250
• Maximum I/O modules without bus extension: up to 64
• Operating temperature: approx. 0 °C to +55 °C
• Mounting: DIN rail
• Protection rating: IP20

BACnet Building Automation Connectivity

BACnet is a widely adopted communication protocol used in building automation systems to connect HVAC equipment, lighting systems and energy management infrastructure. The WAGO 750-832 BACnet/IP controller connects the modular WAGO I/O System directly to BACnet networks, enabling efficient integration of sensors, actuators and control equipment within building management systems. :contentReference

With automatic BACnet object creation and support for IEC 61131-3 programming, engineers can implement customised automation logic while maintaining compatibility with BACnet-based supervisory systems and facility management platforms. :contentReference

Typical Applications

• HVAC control and building management systems.
• Lighting automation and energy management.
• Facility monitoring and control systems.
• Integration of sensors and actuators into BACnet networks.
• Commercial building automation infrastructure.

Trusted by Building Automation Engineers

WAGO BACnet controllers are widely used in building automation projects to provide reliable integration between field devices, sensors and supervisory building management systems.
