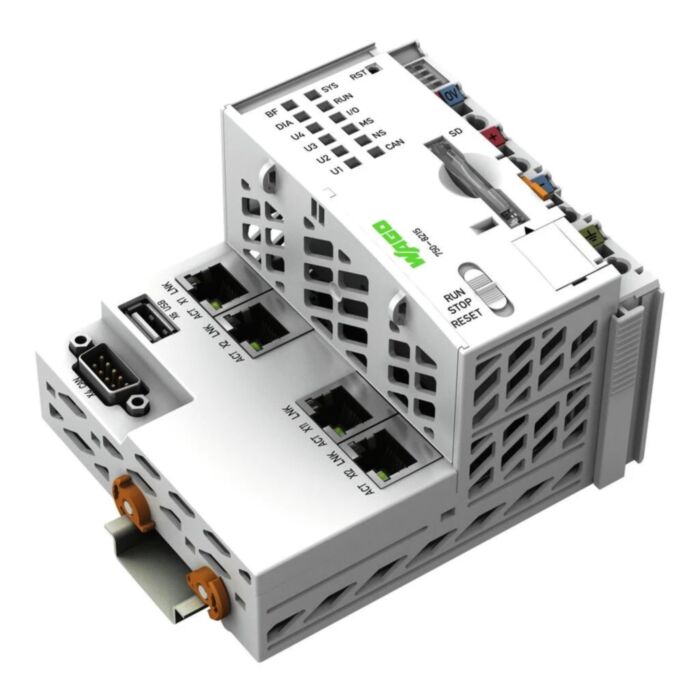

Wago 750-8215 PFC200 2 PROFINET serial G2

Why Choose the WAGO 750-8215 PFC200 Controller?

The WAGO 750-8215 is a high-performance PFC200 programmable field controller (2nd generation) designed for advanced industrial automation, machine control and distributed control architectures. As part of the modular WAGO I/O System 750, the controller combines powerful PLC processing with flexible networking and scalable I/O expansion to support modern automation systems.

The controller integrates four Ethernet interfaces with an internal switch, enabling flexible line topology networking between machines, controllers and supervisory systems. It also includes CAN and CANopen communication interfaces as well as a USB service interface, allowing connection to field devices, engineering tools and industrial communication networks. :contentReference

Powered by a 1 GHz ARM Cortex-A8 processor and running a real-time Linux operating system, the PFC200 controller delivers reliable PLC performance for demanding automation tasks. The device directly supports digital, analogue and speciality modules from the WAGO 750 and 753 Series, allowing engineers to build scalable control systems tailored to industrial applications. :contentReference

Key Advantages

• High-performance PFC200 programmable controller for industrial automation.
• Four Ethernet interfaces with integrated switch for flexible networking.
• CAN and CANopen fieldbus communication for industrial devices.
• Integrated USB service interface for diagnostics and configuration.
• Compatible with the full range of WAGO 750 / 753 Series modular I/O modules.
• Integrated web server for configuration, diagnostics and monitoring.

Key Features

• PFC200 programmable field controller (2nd generation).
• 4 × Ethernet RJ45 interfaces with integrated switch.
• CAN and CANopen fieldbus interfaces.
• USB service interface for engineering and diagnostics.
• ARM Cortex-A8 processor running at 1 GHz.
• 512 MB RAM and 4 GB internal flash memory.
• Integrated web-based configuration and diagnostics.
• Compatible with the modular WAGO I/O System 750 platform.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-8215
• Product type: PFC200 programmable field controller
• Controller generation: PFC200 2nd Generation
• Processor: ARM Cortex-A8, 1 GHz
• Memory: 512 MB RAM, 4 GB flash
• Operating system: Real-time Linux with RT-Preempt patch
• Supply voltage: 24 V DC
• Ethernet interfaces: 4 × RJ45
• Ethernet speed: 10 / 100 Mbit/s
• Fieldbus interfaces: CAN, CANopen
• USB interface: USB-A service port
• Supported protocols: Modbus TCP/UDP, EtherCAT master, EtherNet/IP, MQTT, OPC UA
• I/O compatibility: WAGO 750 / 753 Series modules
• Mounting: DIN rail
• Protection rating: IP20

Industrial Automation Controller Connectivity

Modern industrial automation systems rely on powerful PLC controllers capable of coordinating machines, processing real-time data and communicating across industrial networks. The WAGO PFC200 controller integrates PLC functionality with advanced networking and fieldbus communication, enabling seamless integration between sensors, actuators and supervisory control systems.

Through the modular WAGO I/O System 750, engineers can expand the controller with digital, analogue and communication modules to build scalable automation architectures. This flexible approach allows systems to grow from small machine installations to complex distributed control systems across manufacturing and process industries. :contentReference

Typical Applications

• Machine and equipment automation systems.
• Distributed PLC and remote I/O architectures.
• Factory automation and production machinery.
• Building automation and energy management systems.
• Industrial communication gateways and IIoT applications.

Trusted by Automation Engineers

WAGO PFC200 controllers are widely used by automation engineers and system integrators to build scalable, network-enabled control systems across modern industrial environments.
