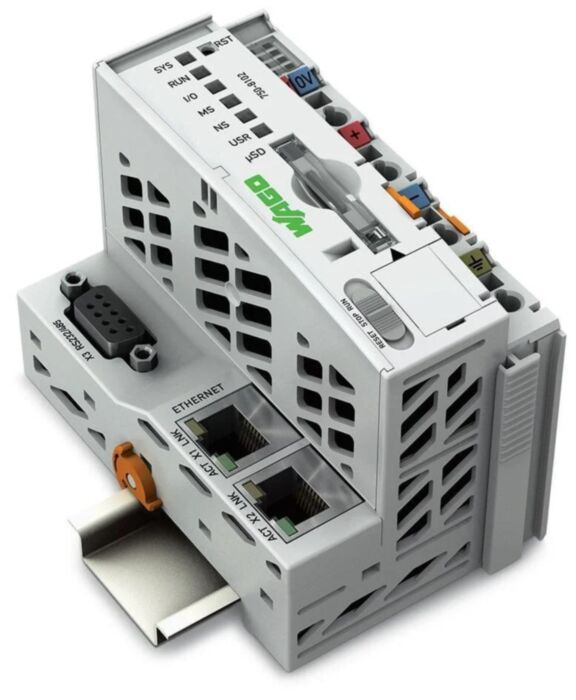

Wago 750-8102 Pfc100, 2Eth Rs

Why Choose the WAGO 750-8102 PFC100 Controller?

The WAGO 750-8102 is a powerful PFC100 programmable logic controller (PLC) designed for distributed automation systems based on the WAGO I/O System 750 and 753. It integrates PLC control, Ethernet networking and serial communication interfaces within a compact DIN-rail device, enabling flexible industrial automation architectures for machinery, process control and building management applications.

The controller features two Ethernet interfaces with an integrated switch, allowing simple line-topology network wiring without additional switches. In addition, it includes RS-232 and RS-485 serial interfaces for integration with legacy equipment and industrial communication networks. :contentReference

Powered by a 600 MHz ARM Cortex-A8 processor running a real-time Linux operating system, the PFC100 provides deterministic control performance while supporting modern industrial protocols such as Modbus TCP/UDP, MQTT and EtherNet/IP adapter functionality. :contentReference

Key Advantages

• Compact PFC100 PLC controller for WAGO I/O System 750 and 753.
• Dual Ethernet ports with integrated switch for simple network wiring.
• Additional RS-232 and RS-485 serial interfaces for device integration.
• Powered by a 600 MHz ARM Cortex-A8 processor for reliable control.
• Supports IEC 61131-3 programming via e!COCKPIT.
• Expandable with up to hundreds of modular I/O modules.

Key Features

• PFC100 programmable controller for distributed automation.
• 2 × Ethernet RJ-45 interfaces with integrated switch.
• RS-232 and RS-485 serial communication ports.
• Real-time Linux operating system with RT-Preempt patch.
• Integrated web server for configuration and diagnostics.
• Supports IEC 61131-3 programming languages.
• Compatible with WAGO 750 and 753 series I/O modules.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: PFC100 / WAGO I/O System 750
• Model: 750-8102
• Controller type: Programmable logic controller (PLC)
• Processor: ARM Cortex-A8, 600 MHz
• Operating system: Real-time Linux 3.18 with RT-Preempt patch
• Programming standard: IEC 61131-3
• Programming environment: e!COCKPIT
• Ethernet interfaces: 2 × RJ-45, 10/100 Mbit/s
• Serial interfaces: RS-232 and RS-485
• Supported protocols: Modbus TCP/UDP, MQTT, EtherNet/IP adapter, Modbus RTU
• Main memory: 256 MB RAM
• Internal flash memory: 256 MB
• Program/data memory: approx. 12 MB dynamically distributed
• Memory expansion: microSD card up to 32 GB
• Maximum I/O modules per node: up to 250
• Maximum modules without bus extension: 64
• Supply voltage: 24 V DC
• Typical input current: approx. 550 mA
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20

Industrial PLC Control for Distributed Automation

Distributed PLC architectures allow automation engineers to place processing power close to machines and process equipment while connecting modular I/O modules across a local data bus. This reduces wiring complexity while improving diagnostics and system scalability.

The WAGO 750-8102 controller integrates PLC logic execution, Ethernet networking and serial communication in one device. It is widely used in machine automation, manufacturing systems, process plants and building automation installations where flexible connectivity and modular I/O expansion are required. :contentReference

Typical Applications

• Industrial machine automation and equipment control.
• Manufacturing and packaging systems.
• Process automation and monitoring installations.
• Building automation and energy management systems.
• Distributed automation networks using modular I/O.

Trusted by Automation Engineers

WAGO PFC100 controllers are widely used in industrial automation systems to provide reliable PLC control, Ethernet networking and scalable modular I/O integration.
