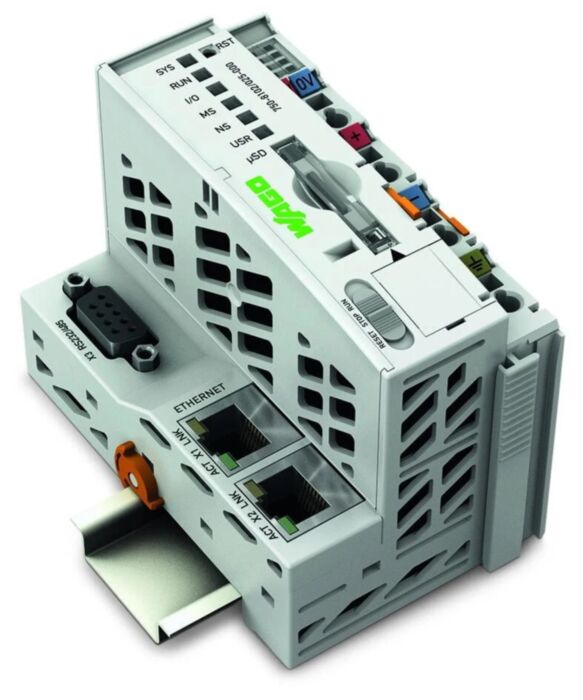

Wago 750-8102/025-000 Pfc100, 2Eth Rs T

Why Choose the WAGO 750-8102/025-000 PFC100 Controller?

The WAGO 750-8102/025-000 is a high-performance PFC100 programmable logic controller (PLC) designed for distributed automation systems using the WAGO I/O System 750 and 753. It integrates PLC processing, Ethernet networking and serial communication into a compact DIN-rail device, providing reliable industrial control for machinery, process automation and building management applications.

The controller includes two Ethernet interfaces with an integrated switch, enabling straightforward line-topology networking without additional switches. It also features RS-232 and RS-485 serial communication ports for integration with industrial equipment and legacy field devices. :contentReference

Powered by a 600 MHz ARM Cortex-A8 processor and running a real-time Linux operating system with RT-Preempt patch, the PFC100 delivers deterministic PLC control while supporting modern industrial protocols including Modbus TCP/UDP, Modbus RTU, MQTT and EtherNet/IP adapter communication. :contentReference

Key Advantages

• Compact PFC100 PLC controller for WAGO I/O System 750 and 753.
• Dual Ethernet ports with integrated switch for simple line networking.
• RS-232 and RS-485 serial interfaces for device and fieldbus integration.
• 600 MHz ARM Cortex-A8 processor for reliable real-time control.
• Supports IEC 61131-3 programming using e!COCKPIT.
• Expandable with hundreds of modular WAGO digital and analogue I/O modules.

Key Features

• PFC100 programmable controller for distributed automation.
• 2 × Ethernet RJ-45 interfaces supporting 10/100 Mbit/s.
• Integrated Ethernet switch enabling line-topology wiring.
• RS-232 and RS-485 communication interfaces.
• Real-time Linux operating system with RT-Preempt patch.
• Integrated web server for configuration and diagnostics.
• Compatible with all WAGO 750 and 753 series I/O modules.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: PFC100 / WAGO I/O System 750
• Model: 750-8102/025-000
• Controller type: Programmable logic controller (PLC)
• Processor: ARM Cortex-A8, 600 MHz
• Operating system: Real-time Linux 3.18 with RT-Preempt patch
• Programming standard: IEC 61131-3
• Programming environment: e!COCKPIT (CODESYS V3 based)
• Ethernet interfaces: 2 × RJ-45, 10/100 Mbit/s
• Serial interfaces: RS-232 and RS-485
• Supported protocols: Modbus TCP/UDP, Modbus RTU, MQTT, EtherNet/IP adapter
• Main memory: 256 MB RAM
• Internal flash memory: 256 MB
• Program/data memory: approx. 12 MB dynamically allocated
• Memory expansion: microSD card up to 32 GB
• Maximum I/O modules per node: up to 250
• Maximum modules without bus extension: 64
• Supply voltage: 24 V DC
• Typical input current: approx. 550 mA
• Operating temperature: −20 to +60 °C (extended temperature range)
• Mounting: DIN-35 rail
• Protection rating: IP20

Industrial PLC Control for Distributed Automation

Distributed PLC architectures enable automation engineers to install control intelligence close to machinery while connecting modular I/O modules through a local data bus. This approach reduces wiring complexity while improving scalability and system diagnostics.

The WAGO 750-8102/025-000 PFC100 controller integrates PLC processing, Ethernet networking and serial communication interfaces into one device. It is widely used in machine automation, manufacturing systems, packaging equipment and building automation installations requiring flexible connectivity and modular expansion. :contentReference

Typical Applications

• Industrial machine automation and equipment control.
• Packaging, bottling and manufacturing systems.
• Process monitoring and industrial control installations.
• Building automation and energy management.
• Distributed automation systems using modular I/O.

Trusted by Automation Engineers

WAGO PFC100 controllers are widely used in industrial automation systems to provide reliable PLC control, Ethernet networking and flexible modular I/O integration.
