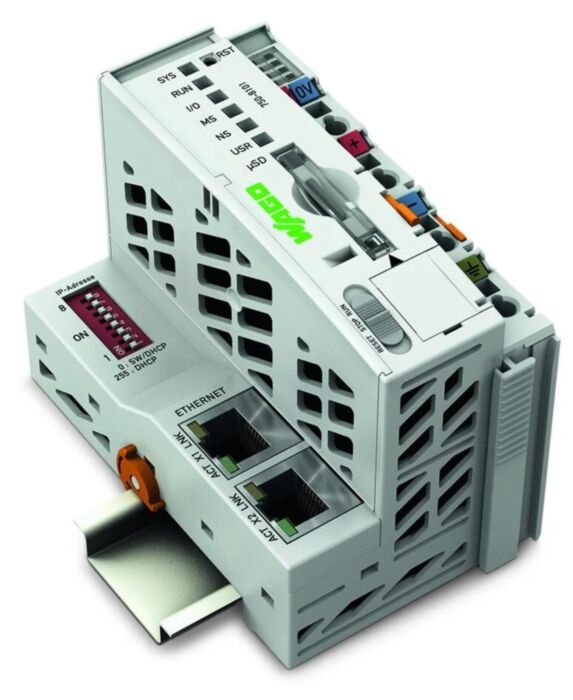

Wago 750-8101 Pfc100, 2Eth

Why Choose the WAGO 750-8101 PFC100 Controller?

The WAGO 750-8101 is a powerful PFC100 programmable logic controller (PLC) designed for distributed automation systems based on the WAGO I/O System 750 and 753. It combines real-time PLC control, Ethernet networking and modular I/O integration in a compact DIN-rail device, enabling scalable automation architectures for machinery, process control and building automation applications.

Equipped with two Ethernet interfaces and an integrated switch, the controller allows simple line-topology network wiring without additional switches. It directly supports the full range of digital, analogue and speciality modules within the WAGO I/O platform, making it ideal for flexible industrial control systems. :contentReference

The PFC100 platform is powered by a 600 MHz ARM Cortex-A8 processor running a real-time Linux operating system with RT-Preempt patch, delivering reliable deterministic control while supporting modern industrial protocols such as Modbus TCP, MQTT and EtherNet/IP adapter functionality. :contentReference

Key Advantages

• Compact PFC100 PLC controller for WAGO I/O System 750 and 753.
• Dual Ethernet interfaces with integrated switch for simple network wiring.
• Supports modern protocols including Modbus TCP, MQTT and EtherNet/IP adapter.
• Powered by a 600 MHz ARM Cortex-A8 processor for reliable real-time control.
• Programmable using IEC 61131-3 languages via e!COCKPIT.
• Expandable with large numbers of digital, analogue and speciality I/O modules.

Key Features

• PFC100 programmable controller for distributed automation.
• 2 × Ethernet RJ-45 interfaces supporting 10/100 Mbit/s.
• Integrated switch enabling line-topology networking.
• Real-time Linux operating system with RT-Preempt patch.
• Integrated web server for diagnostics and configuration.
• Supports IEC 61131-3 programming languages.
• Compatible with WAGO 750 and 753 series I/O modules.
• DIN-rail mounting for industrial control panels.

Technical Specifications

• Manufacturer: WAGO
• Series: PFC100 / WAGO I/O System 750
• Model: 750-8101
• Controller type: Programmable logic controller (PLC)
• Processor: ARM Cortex-A8, 600 MHz
• Operating system: Real-time Linux 3.18
• Programming standard: IEC 61131-3
• Programming environment: e!COCKPIT (CODESYS V3 based)
• Ethernet interfaces: 2 × RJ-45, 10/100 Mbit/s
• Supported protocols: Modbus TCP/UDP, MQTT, EtherNet/IP adapter, HTTP, HTTPS, SNMP, FTP, SSH
• Main memory: 256 MB RAM
• Internal flash memory: 256 MB
• Program/data memory: approx. 12 MB dynamically allocated
• Memory expansion: microSD card up to 32 GB
• Maximum I/O modules per node: up to 250
• Maximum modules without bus extension: 64
• Supply voltage: 24 V DC
• Typical input current: approx. 550 mA
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20

Industrial PLC Control for Distributed Automation

Modern automation systems increasingly use distributed PLC architectures where controllers and I/O modules are located close to machines or process equipment. This approach reduces wiring complexity and improves diagnostics and system scalability.

The WAGO 750-8101 PFC100 controller integrates PLC control, networking and modular I/O expansion within a single device. This architecture allows engineers to design scalable automation systems for packaging machinery, manufacturing lines, process plants and building automation installations. :contentReference

Typical Applications

• Industrial machine automation and equipment control.
• Packaging, bottling and manufacturing systems.
• Process monitoring and industrial control systems.
• Building automation and energy management.
• Distributed control architectures using modular I/O.

Trusted by Automation Engineers

WAGO PFC100 controllers are widely used in industrial automation systems to provide reliable PLC control, Ethernet connectivity and scalable modular I/O integration.
