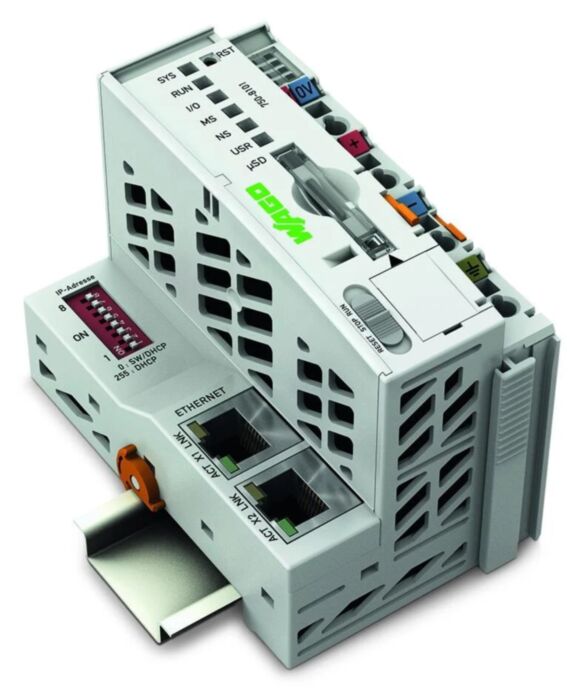

Wago 750-8101/000-010 Controller PFC100; FG0; 2 x ETHERNET - DISCONTINUED

Why Choose the WAGO 750-8101/000-010 PFC100 Controller?

The WAGO 750-8101/000-010 is a compact PFC100 programmable logic controller (PLC) designed for distributed automation systems using the WAGO I/O System 750 and 753. It integrates PLC processing, Ethernet networking and modular I/O connectivity in a single DIN-rail device, enabling scalable industrial control architectures for machinery, process automation and building management systems.

The controller features two Ethernet interfaces with an integrated switch, enabling simple line-topology network wiring without additional switches or hubs. It supports all digital, analogue and speciality I/O modules within the WAGO modular I/O platform, allowing automation engineers to expand control systems flexibly according to application requirements. :contentReference

Powered by a 600 MHz ARM Cortex-A8 processor running a real-time Linux operating system with RT-Preempt patch, the controller provides deterministic control performance while supporting modern industrial communication protocols including Modbus TCP, MQTT and EtherNet/IP adapter functionality. :contentReference

Key Advantages

• Compact PFC100 PLC controller for WAGO I/O System 750 and 753.
• Dual Ethernet ports with integrated switch for line-topology networking.
• Supports industrial protocols including Modbus TCP, MQTT and EtherNet/IP adapter.
• Powered by a 600 MHz ARM Cortex-A8 processor for reliable automation control.
• Programmable using IEC 61131-3 languages via e!COCKPIT.
• Expandable with large numbers of digital, analogue and speciality I/O modules.

Key Features

• PFC100 programmable controller for distributed automation.
• 2 × Ethernet RJ-45 interfaces supporting 10/100 Mbit/s.
• Integrated switch enabling line-topology network wiring.
• Real-time Linux operating system with RT-Preempt patch.
• Integrated web server for diagnostics and configuration.
• Supports IEC 61131-3 programming languages.
• Compatible with all WAGO 750 and 753 series I/O modules.
• DIN rail mounting for industrial control cabinet installation.

Technical Specifications

• Manufacturer: WAGO
• Series: PFC100 / WAGO I/O System 750
• Model: 750-8101/000-010
• Controller type: Programmable logic controller (PLC)
• Processor: ARM Cortex-A8, 600 MHz
• Operating system: Real-time Linux 3.18 with RT-Preempt patch
• Programming standard: IEC 61131-3
• Programming environment: e!COCKPIT (CODESYS V3 based)
• Ethernet interfaces: 2 × RJ-45, 10/100 Mbit/s
• Supported protocols: Modbus TCP/UDP, MQTT, EtherNet/IP adapter, HTTP, HTTPS, SNMP, FTP, SSH
• Main memory: 256 MB RAM
• Internal flash memory: 256 MB
• Program and data memory: approx. 12 MB dynamically distributed
• Memory expansion: microSD card up to 32 GB
• Maximum I/O modules per node: up to 250
• Maximum modules without bus extension: 64
• Supply voltage: 24 V DC
• Typical input current: approx. 550 mA
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20

Industrial PLC Control for Distributed Automation

Distributed PLC architectures enable engineers to place control intelligence close to machines and process equipment while connecting modular I/O modules over a local bus. This approach simplifies wiring, improves diagnostics and allows systems to scale easily as production requirements evolve.

The WAGO 750-8101/000-010 PFC100 controller integrates PLC control, Ethernet networking and modular I/O expansion in a single device. It is widely used in machine automation, manufacturing systems, process control installations and building automation networks. :contentReference

Typical Applications

• Industrial machine automation and equipment control.
• Packaging, bottling and manufacturing systems.
• Process monitoring and control applications.
• Building automation and energy management.
• Distributed automation networks using modular I/O.

Trusted by Automation Engineers

WAGO PFC100 controllers are widely used across industrial automation systems thanks to their reliable PLC performance, Ethernet networking capabilities and flexible integration with modular WAGO I/O platforms.
