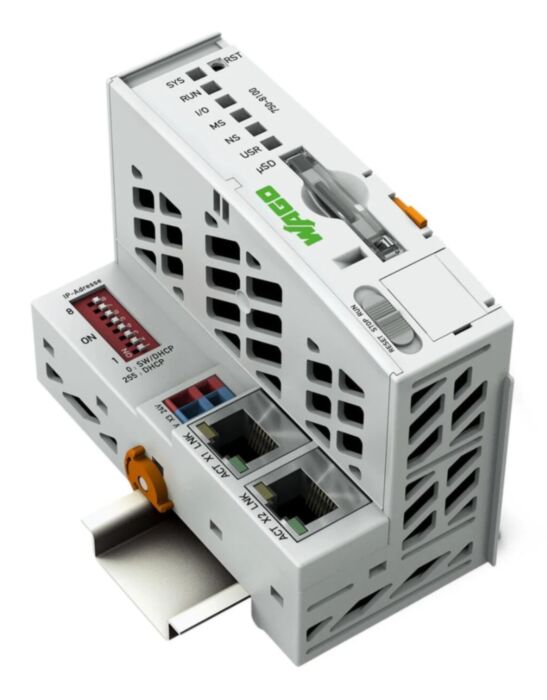

Wago 750-8100 Pfc100, 2Eth Eco

Why Choose the WAGO 750-8100 PFC100 Controller?

The WAGO 750-8100 is a compact PFC100 programmable logic controller (PLC) designed for modern distributed automation systems using the WAGO I/O System 750 and 753. It combines PLC control, Ethernet networking and modular I/O expansion in a single DIN-rail device, enabling flexible machine and process automation architectures.

The controller features two Ethernet interfaces with an integrated switch, allowing simple line-topology network wiring without additional hardware. It directly supports all digital, analogue and speciality modules within the WAGO modular I/O platform, enabling scalable automation systems for machinery, building automation and industrial process control. :contentReference

Powered by a 600 MHz ARM Cortex-A8 processor and running a real-time Linux operating system, the PFC100 provides reliable real-time control performance while supporting modern industrial communication protocols such as Modbus TCP, MQTT and EtherNet/IP adapter functionality. :contentReference

Key Advantages

• Compact PFC100 PLC controller for WAGO I/O System 750 and 753.
• Dual Ethernet ports with integrated switch for simple line networking.
• Supports modern industrial protocols including Modbus TCP, MQTT and EtherNet/IP adapter.
• Powered by a 600 MHz ARM Cortex-A8 CPU for reliable automation control.
• Programmable via IEC 61131-3 standard using e!COCKPIT.
• Expandable with up to hundreds of digital and analogue I/O modules.

Key Features

• PFC100 programmable controller for distributed automation.
• 2 × Ethernet RJ-45 interfaces supporting 10/100 Mbit/s.
• Integrated switch enabling simple network topology.
• Real-time Linux operating system with RT-Preempt patch.
• Integrated web server for diagnostics and configuration.
• Supports IEC 61131-3 programming languages.
• Compatible with all WAGO 750 and 753 series I/O modules.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: PFC100 / WAGO I/O System 750
• Model: 750-8100
• Controller type: Programmable logic controller (PLC)
• Processor: ARM Cortex-A8, 600 MHz
• Operating system: Real-time Linux
• Programming standard: IEC 61131-3
• Programming environment: e!COCKPIT (CODESYS V3 based)
• Ethernet interfaces: 2 × RJ-45, 10/100 Mbit/s
• Supported protocols: Modbus TCP/UDP, MQTT, EtherNet/IP adapter, HTTP(S), SNMP, FTP, SSH
• Main memory (RAM): 256 MB
• Internal flash memory: 256 MB
• Program and data memory: approx. 10 MB dynamically distributed
• Memory expansion: microSD card up to 32 GB
• Maximum I/O modules per node: up to 250
• Maximum modules without bus extension: 64
• Supply voltage: 24 V DC
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20
• Dimensions (W × H × D): approx. 49.5 × 96.8 × 71.9 mm

Industrial PLC Control for Distributed Automation

Modern automation systems increasingly rely on distributed PLC architectures where processing, networking and I/O modules are installed close to machines or process equipment. This approach reduces wiring complexity while improving system scalability and diagnostics.

The WAGO 750-8100 PFC100 controller integrates powerful PLC functionality with Ethernet networking and modular I/O expansion, making it ideal for applications such as packaging machinery, manufacturing systems, building automation and process control installations. :contentReference

Typical Applications

• Industrial machine automation and control systems.
• Process automation and monitoring.
• Building automation and energy management.
• Packaging, bottling and manufacturing equipment.
• Distributed control architectures using modular I/O.

Trusted by Automation Engineers

WAGO PFC100 controllers are widely used in industrial automation systems to provide reliable PLC control, Ethernet connectivity and scalable modular I/O integration.
