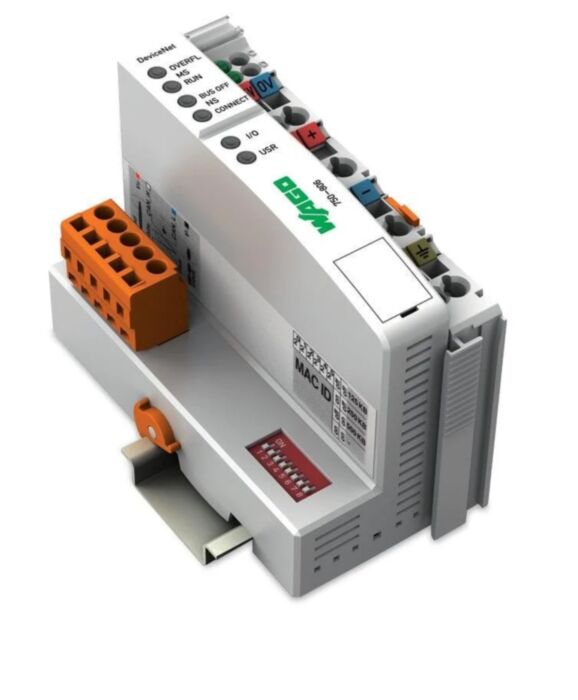

Wago 750-806 Controller Devicenet,

Why Choose the WAGO 750-806 DeviceNet Controller?

The WAGO 750-806 is a DeviceNet programmable fieldbus controller designed for distributed automation systems built on the WAGO I/O System 750. It combines PLC functionality, an I/O interface and DeviceNet fieldbus communication in a single compact DIN-rail device, allowing automation engineers to implement decentralised control architectures efficiently.

The controller exchanges process data with higher-level control systems over the DeviceNet industrial network, while locally managing connected digital and analogue I/O modules. Using the IEC 61131-3 programming standard and WAGO-I/O-PRO engineering software, users can implement customised PLC logic directly within the controller. :contentReference

By integrating communication, I/O management and PLC functionality, the 750-806 simplifies automation system design while maintaining reliable real-time communication across DeviceNet networks.

Key Advantages

• Integrated PLC and DeviceNet fieldbus controller.
• Combines control logic, communication and I/O interface in one device.
• Supports IEC 61131-3 PLC programming.
• Direct integration with WAGO I/O System 750 modular I/O modules.
• Compact DIN-rail installation for industrial control cabinets.
• Reliable communication for distributed automation architectures.

Key Features

• DeviceNet programmable fieldbus controller.
• Integrated 16-bit CPU for control logic execution.
• Supports IEC 61131-3 programming via WAGO-I/O-PRO software.
• Handles process data exchange between fieldbus and connected I/O modules.
• Supports distributed automation with modular I/O expansion.
• DeviceNet communication via 5-pin fieldbus connector.
• LED indicators for diagnostics and communication status.
• DIN-rail mounting for control panel integration.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-806
• Device type: Programmable DeviceNet controller
• Processor: 16-bit CPU
• Programming standard: IEC 61131-3
• Programming software: WAGO-I/O-PRO
• Fieldbus interface: DeviceNet
• Supply voltage: 24 V DC
• Memory size: approx. 128 kB
• Expandable I/O: Supports multiple WAGO 750 I/O modules
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20
• Dimensions (W × H × D): approx. 50 × 100 × 70 mm

DeviceNet Control in Industrial Automation

DeviceNet is a widely used industrial communication protocol designed for reliable communication between controllers, sensors and actuators. By connecting distributed devices across a shared fieldbus network, DeviceNet simplifies wiring and improves system scalability.

The WAGO 750-806 controller allows engineers to integrate modular I/O nodes into DeviceNet automation networks while executing PLC control logic locally. This architecture improves system flexibility and reduces central controller load in distributed automation environments. :contentReference

Typical Applications

• Distributed machine automation systems.
• DeviceNet-based industrial networks.
• Factory automation and assembly systems.
• Process monitoring and control.
• Remote I/O control in industrial installations.

Trusted by Automation Engineers

WAGO DeviceNet controllers are widely used in distributed industrial automation systems, enabling modular PLC control, reliable fieldbus communication and scalable integration of digital and analogue I/O modules.
