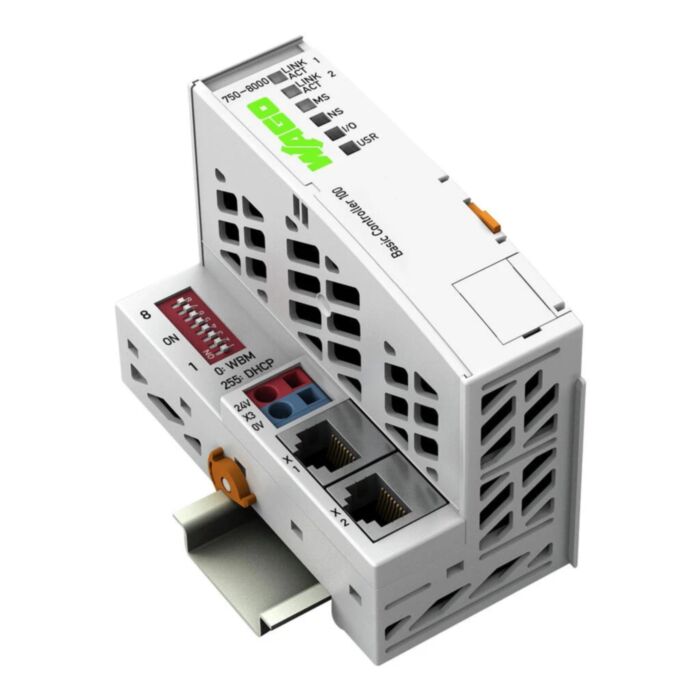

Wago 750-8000 Basic Controller 100

Why Choose the WAGO 750-8000 Basic Controller 100?

The WAGO 750-8000 is a compact programmable logic controller (PLC) designed for distributed automation systems using the WAGO I/O System 750. Known as the Basic Controller 100, it provides reliable control for small to medium automation tasks across industrial, process and building automation environments.

The controller communicates via dual Ethernet interfaces with an integrated switch, enabling straightforward line topology network wiring without additional switches or hubs. It automatically detects all connected I/O modules and creates a local process image containing both digital and analogue signals for real-time control. :contentReference

Designed for flexible PLC programming, the controller supports the IEC 61131-3 programming standard and integrates with the CODESYS development environment. Built-in networking protocols and an integrated web server allow engineers to configure devices, monitor system status and integrate the controller into industrial IT networks. :contentReference

Key Advantages

• Compact PLC controller for WAGO I/O System 750.
• Dual Ethernet ports with integrated switch for line topology.
• Supports IEC 61131-3 programming via CODESYS.
• Integrated web server for configuration and diagnostics.
• Supports common industrial Ethernet protocols.
• Expandable with up to hundreds of WAGO I/O modules.

Key Features

• Basic Controller 100 PLC for distributed automation.
• 2 × Ethernet ports (RJ-45) with integrated switch.
• Supports Modbus TCP/UDP communication.
• Integrated IT protocols including HTTP(S), DHCP, DNS and SNTP.
• Role-based user management and secure communication support.
• Integrated web interface for configuration and diagnostics.
• Automatic detection of connected WAGO I/O modules.
• DIN rail mounting for control cabinet installation.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-8000
• Controller type: PLC / Basic Controller 100
• Programming standard: IEC 61131-3
• Programming environment: CODESYS V3.5
• Communication interfaces: 2 × Ethernet RJ-45
• Supported protocols: Modbus TCP/UDP, HTTP(S), DHCP, DNS, SNTP, SFTP, SNMP
• Program memory: 16 MB
• Data memory: 16 MB
• Maximum I/O modules per node: up to 250
• Maximum modules without bus extension: 64
• Supply voltage: 24 V DC
• Typical input current: approx. 300 mA
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20
• Dimensions (W × H × D): approx. 49.5 × 96.8 × 71.9 mm

PLC Control for Distributed Automation Systems

Modern industrial automation systems often rely on modular PLC platforms that combine control logic, networking and distributed I/O modules. These systems enable flexible machine architectures while simplifying installation and maintenance.

The WAGO 750-8000 controller integrates seamlessly with the WAGO I/O System 750, automatically detecting connected modules and managing the process image for both analogue and digital signals. This architecture allows engineers to build scalable control systems for industrial machines, process plants and building automation applications. :contentReference

Typical Applications

• Industrial machine automation systems.
• Process control and monitoring applications.
• Building automation and energy management.
• Data acquisition and remote monitoring systems.
• Distributed automation networks using modular I/O.

Trusted by Automation Engineers

WAGO 750 Series PLC controllers are widely used in industrial and building automation systems to deliver reliable distributed control, flexible networking and scalable modular I/O architectures.
