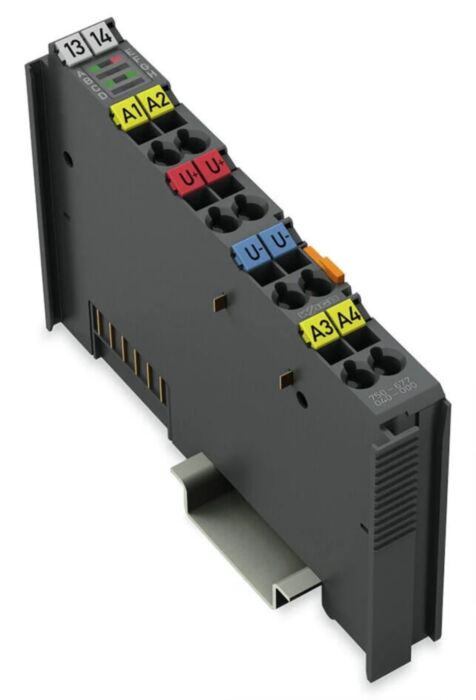

Wago 750-677/040-000 4 pulse width outputs

Why Choose the WAGO 750-677/040-000 PWM Output Module?

The WAGO 750-677/040-000 is a rugged 4-channel pulse width modulation (PWM) output module designed for integration within the WAGO I/O System 750 XTR. It generates precisely adjustable PWM signals that allow automation controllers to regulate devices such as proportional valves, heating elements, lighting systems and motor drives.

Each of the four channels produces a configurable PWM signal operating at up to 20 kHz switching frequency with a 24 V DC output and up to 0.2 A load current. The outputs can be individually configured as high-side or low-side switching channels, providing flexibility when controlling industrial loads. :contentReference

As part of the WAGO XTR series, this module is designed for harsh environments and supports extended temperature ranges and high electromagnetic immunity, making it suitable for demanding industrial installations such as power plants, rail systems and process automation facilities. :contentReference

Key Advantages

• Four independent PWM output channels for precise signal control.
• Adjustable PWM frequency up to 20 kHz.
• Selectable high-side or low-side switching per channel.
• Short-circuit protected outputs for reliable operation.
• Rugged design suitable for harsh industrial environments.
• Compact module for distributed WAGO I/O System 750 XTR installations.

Key Features

• 4 PWM outputs with individually adjustable parameters.
• Output voltage: 24 V DC.
• Output current: 0.2 A per channel.
• PWM resolution: 16-bit signal width.
• Selectable operating modes including PWM duty cycle and frequency modes.
• Bridge mode allowing channel pairs to operate synchronously.
• Short-circuit protected outputs.
• DIN rail mounting within WAGO I/O System nodes.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750 XTR
• Model: 750-677/040-000
• Module type: Pulse width modulation (PWM) output module
• Number of outputs: 4 PWM outputs
• Output voltage: 24 V DC
• Maximum output current: 0.2 A per channel
• PWM frequency: up to 20 kHz
• PWM resolution: 16-bit
• Operating modes: PWM DC, PWM frequency and bridge mode
• System supply voltage: 5 V DC via system bus
• Field supply voltage: 24 V DC
• Connection technology: WAGO CAGE CLAMP® spring terminals
• Mounting: DIN-35 rail
• Operating temperature: −40 to +70 °C
• Protection rating: IP20
• Module width: approx. 12 mm

PWM Signal Control in Industrial Automation

Pulse width modulation (PWM) is widely used in industrial automation to regulate output power and control the behaviour of electrical loads. By adjusting the duty cycle and frequency of a digital signal, PWM outputs can precisely control actuators, heating systems and proportional devices.

The WAGO 750-677/040-000 enables distributed PWM signal generation directly within the WAGO I/O System architecture. Engineers can implement accurate signal control for process automation, motion control and power regulation without requiring additional external controllers.

Typical Applications

• Control of proportional valves and actuators.
• Industrial lighting and heating regulation.
• Motor speed and power control.
• Process automation signal control.
• Distributed automation and machine control systems.

Trusted by Automation Engineers

WAGO PWM output modules are widely used in industrial automation systems to generate precise control signals for actuators, power regulation and distributed machine control applications.
