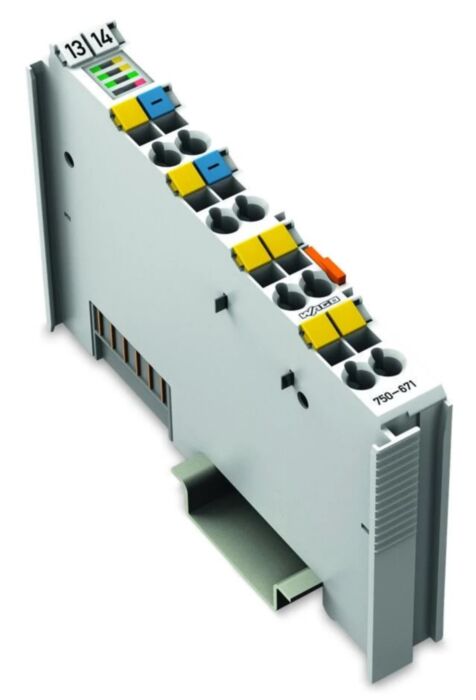

Wago 750-671 Stepper Controller, 24 Vdc 1.5A

Why Choose the WAGO 750-671 Stepper Motor Controller Module?

The WAGO 750-671 is an advanced stepper motor controller module with integrated power driver designed for precise motion control within the WAGO I/O System 750. The module enables direct control of two-phase stepper motors up to 24 V and 1.5 A, making it suitable for positioning tasks and automated motion applications in industrial machinery. :contentReference

The integrated controller supports 64-fold microstepping, reducing resonance effects and preventing step losses during acceleration phases while minimising mechanical wear. Adjustable current limits for stopping, acceleration and constant speed also help optimise motor power consumption and thermal performance. :contentReference

With flexible motion functions including positioning control, command tables, automatic referencing and cam control, the module enables precise motor control directly from the PLC without requiring a separate motion controller.

Key Advantages

• Integrated stepper motor controller with on-board driver.
• Controls two-phase stepper motors up to 24 V / 1.5 A.
• 64-fold microstepping for smooth motion and reduced resonance.
• Integrated positioning and motion control functions.
• Adjustable current limits for improved energy efficiency.
• Compact DIN rail module for WAGO I/O System 750 installations.

Key Features

• Stepper motor controller with integrated power driver.
• Supports two-phase bipolar stepper motors.
• Microstepping resolution up to 64 microsteps per step.
• Flexible motion control including positioning and speed control.
• Command tables and cam control functions.
• Automatic reference runs and event-driven control.
• Two configurable digital inputs for start/stop, limit switches or jog functions.
• Internal software processes inputs without delay.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750
• Model: 750-671
• Module type: Stepper motor controller
• Motor type: Two-phase stepper motor
• Motor supply voltage: 24 V DC
• Maximum motor current: 1.5 A
• Microstepping: up to 64-fold
• Number of digital inputs: 2 configurable inputs
• Control functions: positioning, referencing, cam control, command tables
• System supply voltage: 5 V DC via internal system bus
• Field supply voltage: 24 V DC
• Connection technology: WAGO CAGE CLAMP® terminals
• Mounting: DIN-35 rail
• Operating temperature: 0 to 55 °C
• Protection rating: IP20
• Module width: approx. 51 mm

Industrial Motion Control Applications

Stepper motors are widely used in industrial automation for precise positioning tasks. Applications such as pick-and-place equipment, conveyor positioning, laboratory automation and packaging machines require reliable motion control and repeatable positioning accuracy.

The WAGO 750-671 integrates motion control directly into the distributed WAGO I/O platform. By combining PLC control with integrated motor driving and positioning logic, engineers can implement decentralised motion control systems without additional dedicated motion hardware.

Typical Applications

• Positioning systems in industrial machinery.
• Packaging and material handling equipment.
• Pick-and-place automation systems.
• Laboratory automation and testing equipment.
• Conveyor positioning and indexing systems.

Trusted by Automation Engineers

WAGO motion control modules are widely used by machine builders and automation engineers to implement precise positioning and motion control within modular PLC automation systems.
