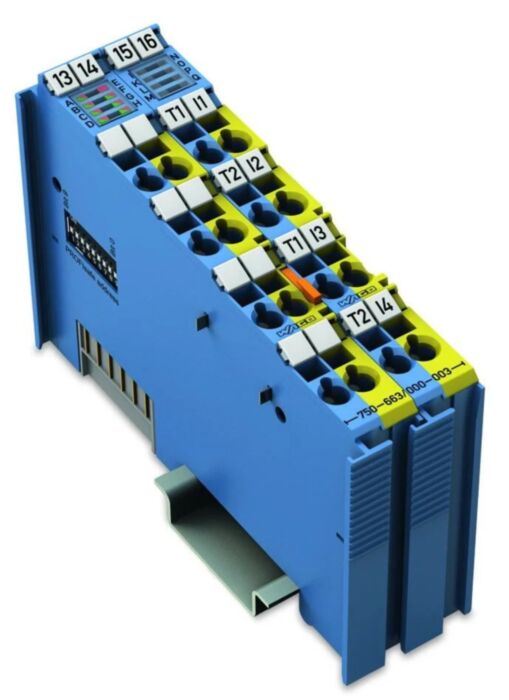

Wago 750-663/000-003 Intrinsically Safe, 4-Channel, Profisafe, 24 Vdc With Diagnostics

Why Choose the WAGO 750-663/000-003 Intrinsically Safe PROFIsafe Digital Input Module?

The WAGO 750-663/000-003 is an intrinsically safe 4-channel digital input module designed for safety-critical automation systems within the WAGO I/O System 750. It enables safe integration of emergency stop switches, safety door interlocks, selector switches and other safety devices into PLC-based control systems using the PROFIsafe protocol.

The module is specifically designed for installations in hazardous environments. It allows intrinsically safe sensors located in Zone 0, Zone 1 and Zone 2 hazardous areas to be connected to safety automation systems while maintaining compliance with functional safety standards. :contentReference

Each of the four inputs is a clock-sensitive fail-safe input powered by two differently clocked test outputs. This architecture continuously monitors wiring conditions and detects cross-circuits or unintended external voltages, ensuring reliable operation in demanding industrial environments. :contentReference

Key Advantages

• Fail-safe 4-channel intrinsically safe digital input module.
• Supports PROFIsafe communication for functional safety systems.
• Allows connection of safety sensors in hazardous zones 0, 1 and 2.
• Continuous monitoring for wiring faults and cross-circuits.
• High safety classifications up to SIL 3 / Category 4 / PL e.
• Compact DIN rail module for WAGO I/O System 750 installations.

Key Features

• 4 fail-safe digital inputs with test pulse monitoring.
• Intrinsically safe signal interface for hazardous area sensors.
• Two clock outputs (T1 and T2) for safety monitoring.
• Continuous detection of cross-circuits and supply faults.
• Configurable input filter times from 0 to 200 ms.
• Status LEDs for channel diagnostics and module status.
• Compatible with PROFIsafe V1 and V2 communication protocols.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750
• Model: 750-663/000-003
• Module type: Intrinsically safe fail-safe digital input
• Number of inputs: 4 digital inputs
• Signal type: 24 V DC digital input
• Safety protocol: PROFIsafe
• Functional safety rating: up to SIL 3 / Cat. 4 / PL e
• Input current: approx. 3 mA per channel
• Maximum signal frequency: 50 Hz
• Input filter: 0–200 ms configurable
• System supply voltage: 5 V DC via system bus
• Field supply voltage: 24 V DC intrinsically safe supply
• Isolation: approx. 300 VAC system/field
• Connection technology: WAGO CAGE CLAMP® spring terminals
• Mounting: DIN-35 rail
• Protection rating: IP20
• Operating temperature: 0 to 55 °C
• Dimensions: approx. 24 × 100 × 67.8 mm

Safety Automation in Hazardous Areas

Industrial plants operating in hazardous environments such as chemical processing, oil and gas facilities or energy infrastructure require intrinsically safe automation equipment. These systems must prevent sparks or electrical faults that could ignite flammable gases or dust.

The WAGO 750-663/000-003 allows intrinsically safe sensors and safety devices installed in hazardous zones to be connected safely to PLC automation systems. By combining PROFIsafe communication with intrinsically safe signal handling, engineers can implement compliant safety architectures across hazardous industrial installations. :contentReference

Typical Applications

• Emergency stop circuits in hazardous environments.
• Safety door monitoring systems.
• Process safety instrumentation in chemical plants.
• Oil and gas facility safety monitoring.
• Industrial automation systems requiring intrinsically safe inputs.

Trusted by Safety and Automation Engineers

WAGO intrinsically safe I/O modules are widely used in process automation, oil and gas facilities and hazardous industrial environments where reliable functional safety systems are required.
