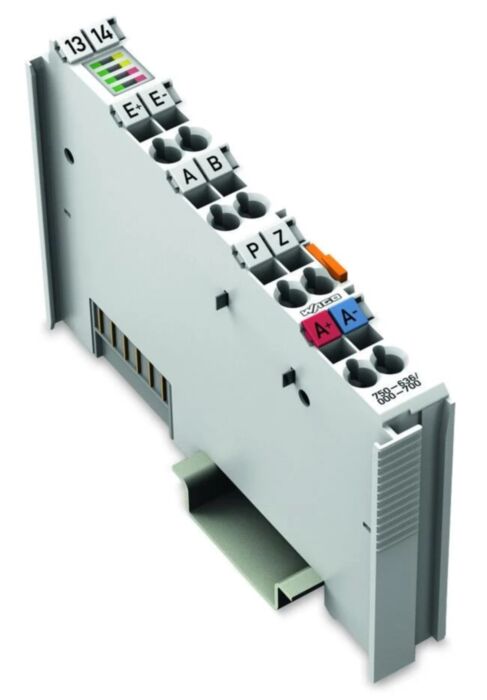

Wago 750-636/000-700 Dc-Drive Controller, 24 Vdc 5A

Why Choose the WAGO 750-636/000-700 DC Drive Controller?

The WAGO 750-636/000-700 is an intelligent DC drive controller module designed for precise motor control within the WAGO I/O System 750. It enables reliable positioning and bidirectional control of 24 V DC motors up to 5 A, making it ideal for motion control applications in industrial automation systems.

This module integrates directly into WAGO modular fieldbus nodes and provides advanced positioning capabilities using incremental encoder feedback. It supports accurate motor positioning, limit switch monitoring and preset functions, allowing machines and automation equipment to perform controlled movement operations.

With integrated protection features and compact DIN rail mounting, the controller simplifies motor integration in PLC systems. It is commonly used for positioning tasks in machinery, conveyor systems, actuators and automated handling equipment. :contentReference

Key Advantages

• Integrated DC motor drive controller for WAGO I/O System 750.
• Supports 24 V DC motors up to 5 A.
• Provides accurate positioning control using encoder feedback.
• Built-in H-bridge motor driver for bidirectional operation.
• Compatible with modular WAGO fieldbus couplers and PLC controllers.
• Compact DIN rail module for scalable automation systems.

Key Features

• DC motor drive controller for automation systems.
• Nominal 24 V DC supply voltage.
• Maximum motor current up to 5 A.
• Bidirectional motor control via integrated H-bridge.
• Incremental encoder interface for position feedback.
• Three digital inputs for limit switches and preset signals.
• Status LED indicators for diagnostics.
• Compatible with WAGO I/O System 750 modular automation nodes.

Technical Specifications

• Manufacturer: WAGO
• Series: I/O System 750
• Model: 750-636/000-700
• Module type: DC motor drive controller
• Motor supply voltage: 24 V DC
• Current rating: up to 5 A
• Control function: Positioning controller
• Digital inputs: 3 (limit switches and preset signal)
• Encoder interface: Incremental encoder input
• Output stage: Integrated H-bridge motor driver
• Mounting: DIN-35 rail
• Connection technology: WAGO CAGE CLAMP® spring terminals
• Ingress protection: IP20
• Operating temperature: 0 to 55 °C
• Application: DC motor positioning and motion control

Industrial Motion Control in Automation Systems

Industrial machinery frequently requires precise motor control for positioning mechanisms, conveyor movement and actuator control. Modules such as the WAGO 750-636/000-700 integrate motion control capabilities directly into PLC-based automation systems, reducing the need for separate motor controllers.

Using encoder feedback and configurable positioning parameters, the controller enables accurate motion profiles while maintaining compact system architecture within modular automation platforms. This makes it suitable for both machine building and process automation environments. :contentReference

Typical Applications

• Position control for small DC motors.
• Automated conveyor positioning systems.
• Industrial actuators and mechanical positioning devices.
• Packaging and material handling machinery.
• Machine automation and robotics subsystems.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely deployed by machine builders and control engineers for reliable motion control, modular automation and scalable industrial control systems.
