Wago 750-635 Digital Impulse Interface,

Why Choose the WAGO 750-635 Digital Impulse Interface Module?

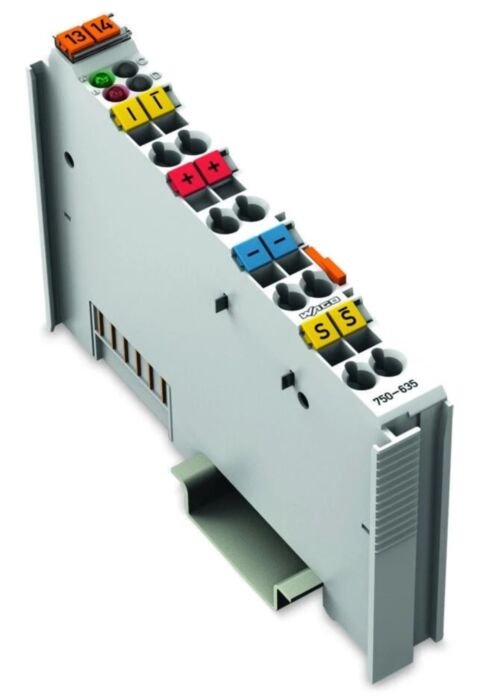

The WAGO 750-635 is a specialised digital impulse interface module designed for the WAGO I/O System 750 and 753. It connects magnetostrictive linear position sensors that use a start/stop measurement interface, enabling accurate position detection in industrial automation and motion control applications.

After the controller sends a read pulse to the sensor, the sensor returns a time-delayed impulse. The delay time is proportional to the measured distance, allowing the controller to determine the exact position of the magnet along the sensor rod. The module processes this signal and stores the measured position data directly in the process image of the fieldbus controller. :contentReference

The interface uses RS-422 differential signalling to ensure reliable communication between the sensor and the controller even in electrically noisy industrial environments. This makes the module suitable for precision position measurement in automation systems such as robotics, production lines and hydraulic positioning equipment. :contentReference

Key Advantages

• Direct interface for magnetostrictive distance measurement sensors.
• Supports sensors with a start/stop interface.
• Reliable communication via RS-422 differential signalling.
• High-precision position resolution down to approximately 1 µm.
• Position values transferred directly to the PLC process image.
• Compatible with WAGO I/O System 750 and 753 automation platforms.

Key Features

• Digital impulse interface for linear position sensors.
• 1 differential RS-422 input channel.
• Start/Stop measurement interface for magnetostrictive sensors.
• 24-bit position data with additional control/status byte.
• 2 ms typical update time.
• 24 V sensor supply via power jumper contacts.
• CAGE CLAMP spring terminals for secure wiring.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-635
• Module type: Digital impulse interface
• Signal type: RS-422 differential
• Number of inputs: 1
• Position resolution: approx. 1 µm
• Update time: approx. 2 ms
• Data width: 24-bit position value + 8-bit control/status
• Maximum sensor cable length: approx. 500 m
• System supply voltage: 5 V DC via data contacts
• Field supply voltage: 24 V DC
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: 0.08 to 2.5 mm² (AWG 28–14)
• Mounting type: DIN-35 rail
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

High-Precision Position Measurement for Automation Systems

Magnetostrictive position sensors are widely used in industrial machinery to measure linear movement with high precision. These sensors provide non-contact measurement of piston or actuator position in hydraulic cylinders, production equipment and process automation systems.

The WAGO 750-635 integrates these sensors directly into distributed PLC architectures. By converting start/stop impulse signals into precise digital position data, the module enables real-time monitoring and control of linear positioning systems across industrial automation networks. :contentReference

Typical Applications

• Magnetostrictive linear position sensors.
• Hydraulic cylinder position monitoring.
• Industrial motion control systems.
• Machine automation and robotics.
• Process control and measurement systems.

Trusted by Automation Engineers

WAGO position interface modules are widely used in industrial automation systems to capture precise motion and displacement data from high-accuracy sensors.
