Why Choose the WAGO 750-630/000-011 SSI Transmitter Interface Module?

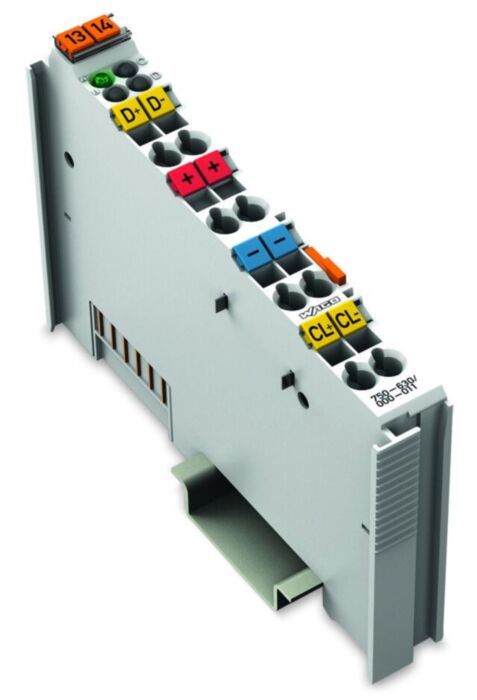

The WAGO 750-630/000-011 is a specialised SSI transmitter interface module for the WAGO I/O System 750 and 753. It enables direct connection of Synchronous Serial Interface (SSI) transmitters and encoders to distributed PLC and industrial control systems, allowing high-resolution position and measurement data to be captured and processed in real time.

The module generates the required clock signal for the connected SSI device and reads the incoming serial data stream. This information is transferred directly to the process image of the PLC or industrial PC, allowing absolute rotary encoders and other SSI-based sensors to be integrated seamlessly into modern automation architectures. :contentReference

This version supports up to 25-bit encoder data with transmission speeds of up to 125 kHz and uses binary code transmission. The differential RS-422 interface ensures stable communication in demanding industrial environments where electrical interference may be present. :contentReference

Key Advantages

• Direct interface for SSI encoders and transmitters.
• Supports 25-bit high-resolution measurement data.
• 125 kHz communication speed for reliable signal acquisition.
• Stable communication using differential RS-422 signalling.
• Compact 12 mm DIN rail module suitable for dense control cabinets.
• Compatible with WAGO I/O System 750 and 753.

Key Features

• SSI transmitter interface for distributed automation systems.
• 25-bit data width supporting high-precision encoders.
• Binary code data format for position transmission.
• Clock generation and serial data acquisition.
• 24 V sensor power supply via power jumper contacts.
• CAGE CLAMP spring terminals for secure industrial wiring.
• Designed for modular PLC and distributed I/O architectures.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-630/000-011
• Module type: SSI transmitter interface
• Signal interface: Differential RS-422
• Data width: up to 25 bits
• Transmission speed: up to 125 kHz
• Data format: Binary code
• Sensor supply voltage: 24 V DC via power jumper contacts
• System supply voltage: 5 V DC via internal data contacts
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.08 to 2.5 mm² (AWG 28–14)
• Mounting type: DIN-35 rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Protection rating: IP20

Encoder Integration in Industrial Automation Systems

Absolute encoders and SSI transmitters are widely used in automation systems to measure machine position, displacement and motion. These sensors provide accurate feedback for motion control, robotics, packaging machinery and high-precision manufacturing processes.

The WAGO 750-630/000-011 allows these sensors to be integrated directly into distributed I/O architectures. By generating the required clock pulses and reading the returning serial data from the encoder, the module transfers measurement values to the PLC for real-time monitoring and machine control. :contentReference

Typical Applications

• Absolute rotary encoder interfaces.
• Linear position measurement systems.
• Motion control and robotics.
• CNC machinery and automated production equipment.
• Industrial automation and machine building.

Trusted by Automation Engineers

WAGO I/O System 750 interface modules are widely trusted by automation engineers to integrate high-precision encoders and field sensors into modern PLC-based automation systems.
