Why Choose the WAGO 750-630/000-006 SSI Transmitter Interface Module?

The WAGO 750-630/000-006 is an advanced SSI transmitter interface module designed for the WAGO I/O System 750 and 753. It enables direct connection of Synchronous Serial Interface (SSI) encoders and transmitters to PLC-based automation systems, allowing precise position and measurement data to be transferred to the control system in real time.

The module generates the clock signal required by the SSI device and reads the serial data returned by the sensor. This data is then transferred directly into the process image of the PLC or industrial PC, enabling seamless integration of absolute encoders and linear position sensors within distributed automation architectures. :contentReference

Supporting 24-bit data width and transmission speeds up to 250 kHz, the module delivers fast and reliable encoder data acquisition. Communication uses a differential RS-422 interface, ensuring stable operation even in electrically noisy industrial environments. :contentReference

Key Advantages

• Direct connection for SSI encoders and transmitters.
• Supports 24-bit high-resolution position data.
• High-speed communication up to 250 kHz.
• Reliable transmission using differential RS-422 signalling.
• Compact 12 mm DIN rail module suitable for dense control cabinets.
• Compatible with WAGO I/O System 750 and 753 controllers.

Key Features

• SSI transmitter interface for industrial encoder connectivity.
• 24-bit data width with Gray code transmission.
• Serial transmission rate: up to 250 kHz.
• Differential RS-422 clock and data signals.
• Integrated sensor power supply via power jumper contacts.
• CAGE CLAMP spring terminals for secure wiring.
• Designed for modular distributed automation systems.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753

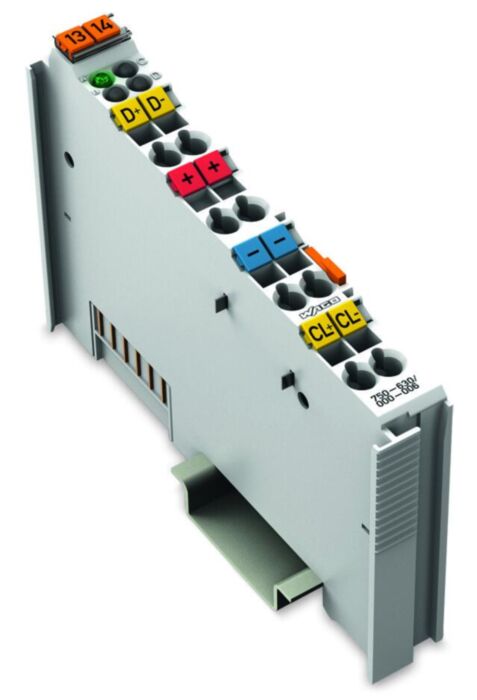

• Model: 750-630/000-006
• Module type: SSI transmitter interface
• Encoder connection: +D / −D data inputs, +CL / −CL clock outputs
• Signal interface: Differential RS-422
• Data width: 24 bits
• Transmission rate: up to 250 kHz
• Code format: Gray code
• Sensor supply voltage: 24 V DC via power jumper contacts
• System supply voltage: 5 V DC via data contacts
• Isolation: 500 V between system and field supply
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.08 to 2.5 mm² (AWG 28–14)
• Mounting type: DIN-35 rail
• Module width: 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Encoder Integration for Industrial Automation

Absolute encoders and SSI transmitters are widely used in motion control, robotics and precision manufacturing systems to measure position and movement. These sensors provide accurate feedback for machine control, safety systems and automated production processes.

The WAGO 750-630/000-006 enables direct integration of SSI sensors into modular distributed I/O systems. By generating the necessary clock pulses and reading the serial encoder data, the module ensures precise measurement data is transmitted to the control system for monitoring and control. :contentReference

Typical Applications

• Absolute rotary encoder interfaces.
• Linear position measurement systems.
• Motion control and robotics.
• CNC machinery and automated production lines.
• Industrial automation and machine building.

Trusted by Automation Engineers

WAGO I/O System 750 interface modules are widely used by automation engineers to integrate encoders, sensors and field devices into modern PLC-based control systems.
