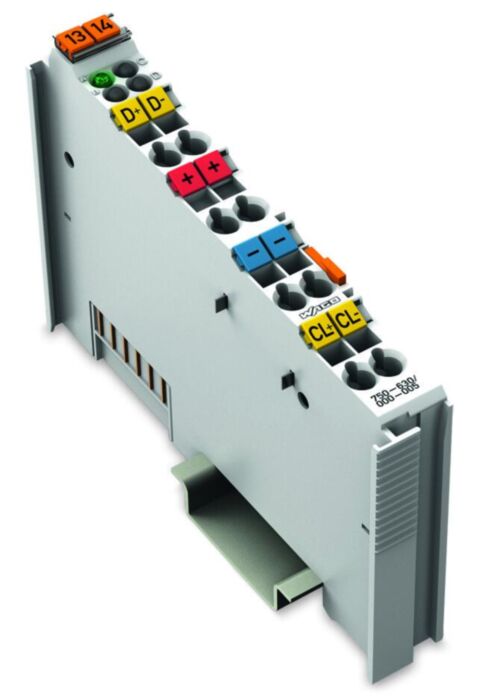

Wago 750-630/000-005 Ssi Interface,

Why Choose the WAGO 750-630/000-005 SSI Transmitter Interface Module?

The WAGO 750-630/000-005 is an SSI transmitter interface module designed for the WAGO I/O System 750 and 753. It allows direct connection of Synchronous Serial Interface (SSI) sensors and encoders to PLC-based automation systems, enabling accurate acquisition of position and measurement data in industrial environments.

The module generates the clock signal required by the SSI sensor, reads the returning serial data and transfers the measured values directly into the process image of the PLC or industrial controller. This allows absolute rotary encoders and linear position transmitters to be integrated seamlessly into distributed control systems. :contentReference

This version supports 15-bit encoder data with transmission speeds up to 125 kHz, using differential RS-422 signalling for reliable communication even in electrically noisy industrial installations. :contentReference

Key Advantages

• Direct interface for SSI encoders and transmitters.
• Supports 15-bit encoder data for accurate measurement.
• 125 kHz transmission speed for fast data acquisition.
• Reliable communication using differential RS-422 signalling.
• Compact 12 mm DIN rail module for dense automation cabinets.
• Compatible with WAGO I/O System 750 and 753 controllers.

Key Features

• SSI transmitter interface for industrial encoder integration.
• 15-bit data width with Gray code transmission.
• Status byte support for diagnostics.
• 125 kHz SSI communication speed.
• 24 V sensor supply via power jumper contacts.
• CAGE CLAMP spring terminals for reliable wiring.
• Designed for distributed automation systems.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-630/000-005
• Module type: SSI transmitter interface
• Interface signal: Differential RS-422
• Data width: 15 bits
• Transmission rate: up to 125 kHz
• Code format: Gray code
• Sensor supply: 24 V DC via power jumper contacts
• System supply voltage: 5 V DC via data contacts
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: 0.08 to 2.5 mm² (AWG 28–14)
• Mounting type: DIN-35 rail
• Module width: 12 mm
• Operating temperature: 0 °C to +55 °C
• Protection rating: IP20

Encoder Integration for Automation and Motion Systems

Absolute encoders and SSI transmitters are widely used in automation systems to measure position, speed and displacement in machinery. These sensors provide critical feedback for motion control, robotics and precision manufacturing processes.

The WAGO 750-630/000-005 allows these SSI devices to be integrated directly into distributed PLC architectures. The module generates the required clock pulses, reads the serial data stream from the encoder and transfers the measured values to the control system for real-time monitoring and control. :contentReference

Typical Applications

• Absolute rotary encoder interfaces.
• Linear position measurement systems.
• Motion control and robotics.
• CNC machinery and industrial automation.
• Packaging and production equipment.

Trusted by Automation Engineers

WAGO I/O System 750 interface modules are widely trusted by automation engineers to integrate sensors and encoders into modern PLC-based control systems.
