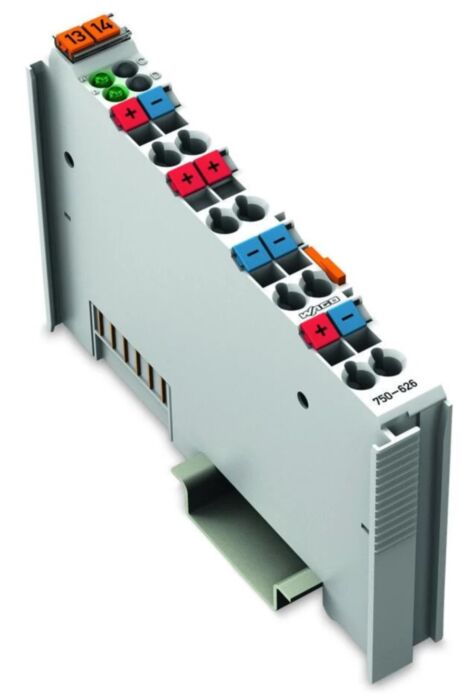

Wago 750-626 Supply Filter, 24 Vdc

Why Choose the WAGO 750-626 Potential Distribution Module?

The WAGO 750-626 is a compact potential distribution module designed for the WAGO I/O System 750 and 753. It distributes the 24 V DC field supply across multiple I/O modules within a distributed automation node, simplifying power routing in modular PLC systems.

By providing reliable power distribution through internal power jumper contacts, the module enables engineers to efficiently supply downstream I/O modules without complex wiring. This simplifies cabinet design and helps maintain organised power distribution within industrial control systems.

The 750-626 integrates seamlessly into the WAGO modular I/O assembly and provides multiple connection points via CAGE CLAMP spring terminals, ensuring secure wiring and long-term reliability in industrial automation environments.

Key Advantages

• Distributes 24 V DC field supply across modular I/O systems.
• Simplifies power distribution within PLC nodes.
• Reduces wiring complexity in automation control cabinets.
• Supports high current distribution via power jumper contacts.
• Compact 12 mm DIN rail module for high-density installations.
• Compatible with WAGO I/O System 750 and 753.

Key Features

• Potential distribution module for modular PLC systems.
• Nominal voltage: 24 V DC field supply.
• Power jumper contacts for internal distribution.
• Multiple field wiring terminals for supply distribution.
• CAGE CLAMP spring terminals for reliable connections.
• DIN-35 rail mounting for control cabinet installation.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-626
• Module type: Potential distribution module
• Nominal voltage: 24 V DC
• Maximum current via power jumper contacts: up to 10 A
• System supply voltage: 5 V via internal data contacts
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.08 to 2.5 mm² (AWG 28–14)
• Mounting type: DIN-35 rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Protection rating: IP20

Power Distribution in Modular Automation Systems

Distributed PLC and fieldbus I/O systems rely on stable power distribution to supply sensors, actuators and communication modules. Efficient power routing within the automation node helps reduce wiring complexity and ensures consistent electrical performance across all connected devices.

The WAGO 750-626 provides reliable distribution of the 24 V field supply across the modular I/O assembly. Its integrated power jumper contacts allow multiple I/O modules to receive the same supply while maintaining a compact and organised control cabinet layout.

Typical Applications

• Distributed PLC and fieldbus I/O systems.
• Industrial machine control panels.
• Automation systems requiring modular power distribution.
• Manufacturing and process automation equipment.
• Control cabinets with WAGO I/O System 750 or 753 nodes.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely trusted by automation engineers to build reliable distributed control systems for modern industrial automation.
