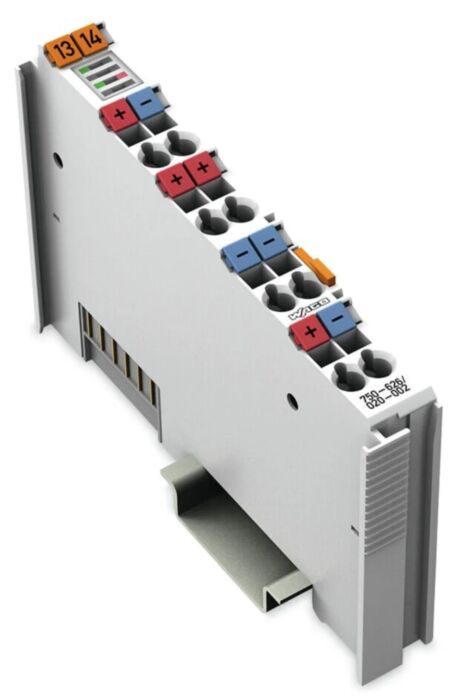

Wago 750-626/020-000 Supply Filter, 24 Vdc Hi

Why Choose the WAGO 750-626/020-000 Potential Distribution Module?

The WAGO 750-626/020-000 is a specialised potential distribution module designed for the WAGO I/O System 750 and 753. It distributes the 24 V DC field supply within a modular I/O station, allowing efficient power routing to multiple automation modules while maintaining a clean and organised control cabinet layout.

The module simplifies wiring by using internal power jumper contacts to distribute supply voltage across adjacent modules. Engineers can also connect additional field devices directly via the integrated CAGE CLAMP terminals, ensuring reliable connections within industrial automation systems.

This variant provides enhanced isolation characteristics suitable for demanding industrial environments where reliable field supply distribution and electrical separation are required.

Key Advantages

• Efficiently distributes 24 V DC field supply within modular I/O nodes.
• Simplifies power distribution in PLC automation systems.
• Reduces wiring complexity in control cabinets.
• Supports high current distribution via power jumper contacts.
• Provides enhanced isolation for demanding installations.
• Compatible with WAGO I/O System 750 and 753.

Key Features

• Potential distribution module for modular PLC systems.
• Nominal voltage: 24 V DC.
• Power jumper contacts for internal supply distribution.
• Multiple connection terminals for field wiring.
• CAGE CLAMP spring terminals for reliable wiring.
• DIN-35 rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-626/020-000
• Module type: Potential distribution module
• Nominal voltage: 24 V DC
• Maximum current via power jumper contacts: up to 10 A
• System supply voltage: 5 V via internal data contacts
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.08 to 2.5 mm² (AWG 28–14)
• Mounting type: DIN-35 rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Protection rating: IP20

Power Distribution in Modular Automation Systems

Modern industrial automation systems rely on stable field supply distribution to power sensors, actuators and communication modules. Efficient power routing within the modular I/O station helps reduce wiring complexity while maintaining reliable electrical performance.

The WAGO 750-626/020-000 distributes the 24 V field supply across the automation node using internal power jumper contacts. This enables multiple I/O modules to receive consistent supply voltage while maintaining a compact and organised cabinet design.

Typical Applications

• Distributed PLC and fieldbus I/O systems.
• Industrial machine control panels.
• Automation systems requiring modular power distribution.
• Manufacturing and process automation equipment.
• Control cabinets using WAGO I/O System 750 or 753.

Trusted by Automation Engineers

WAGO I/O System 750 modules are widely trusted by automation engineers to build reliable distributed control systems for modern industrial automation.
