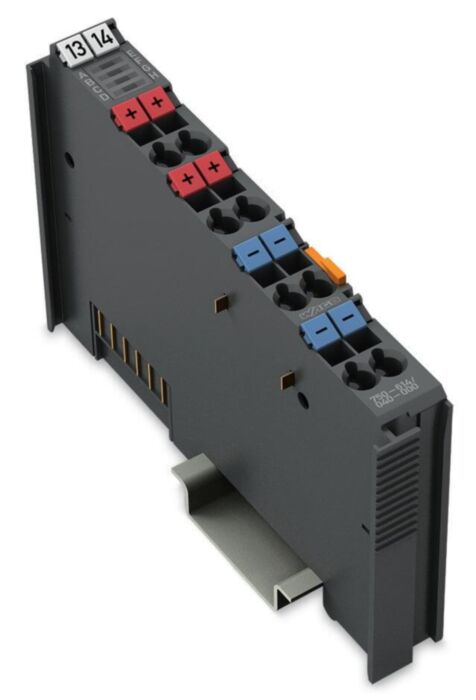

Wago 750-614/040-000 Field side connection module AC/DC 0-230 V, XTR - Extreme version Dark Gray

Why Choose the WAGO 750-614/040-000 XTR Potential Distribution Module?

The WAGO 750-614/040-000 is a rugged potential distribution module designed for the WAGO I/O System 750 XTR. It enables multiple tapping points for field-side supply voltage, allowing efficient distribution of power to sensors, actuators and automation devices within distributed PLC and fieldbus systems.

Part of the WAGO automation product range, this XTR module is engineered for installations exposed to extreme industrial conditions. The module distributes voltages from 0 to 230 V AC/DC through integrated power jumper contacts, helping reduce wiring complexity and eliminate the need for additional DIN rail terminal blocks. :contentReference

With its compact design and reliable CAGE CLAMP connections, the 750-614/040-000 allows control engineers to create organised control cabinets while maintaining reliable power distribution across modular automation nodes. :contentReference

Key Advantages

• Provides multiple tapping points for distributing field supply voltage.
• Supports AC/DC voltages from 0 to 230 V.
• Designed for harsh industrial environments using WAGO XTR technology.
• Eliminates the need for additional DIN rail terminal blocks.
• Reliable wiring with WAGO CAGE CLAMP spring terminals.
• Compact 12 mm DIN rail module for high-density control cabinets.

Key Features

• Potential distribution module for WAGO I/O System 750 XTR.
• Voltage range: 0 to 230 V AC/DC.
• Power jumper contact capacity: up to 10 A.
• Designed for extreme environmental conditions (XTR series).
• CAGE CLAMP spring terminals for secure wiring.
• DIN-35 rail mounting for control cabinet installation.
• Compact width for modular automation assemblies.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 XTR
• Model: 750-614/040-000
• Module type: Potential distribution module
• Field voltage: 0 to 230 V AC/DC
• System supply voltage: 5 V DC (provided by system bus)
• Current capacity (power jumper contacts): 10 A
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.25 to 2.5 mm² (AWG 24–14)
• Mounting type: DIN-35 rail
• Width: approx. 12 mm
• Height: approx. 100 mm
• Depth: approx. 67.8 mm
• Operating temperature: −40 °C to +70 °C
• Protection rating: IP20

Industrial Automation Power Distribution

Distributed automation systems require efficient power distribution to ensure sensors, actuators and field devices operate reliably across machines and production lines. Potential distribution modules simplify wiring by providing multiple connection points directly within the modular I/O assembly.

The WAGO 750-614/040-000 distributes field-side supply voltage across the automation node while maintaining reliable electrical connections through internal jumper contacts. This approach reduces wiring complexity and helps maintain clean, organised control cabinets in demanding industrial environments. :contentReference

Typical Applications

• Distributed PLC and fieldbus I/O systems.
• Industrial machine control panels.
• Factory automation and manufacturing systems.
• Sensor and actuator power distribution.
• Automation installations operating in harsh environments.

Trusted by Automation Engineers

WAGO I/O System 750 XTR modules are widely used by automation engineers to build reliable distributed control systems in demanding industrial environments.
