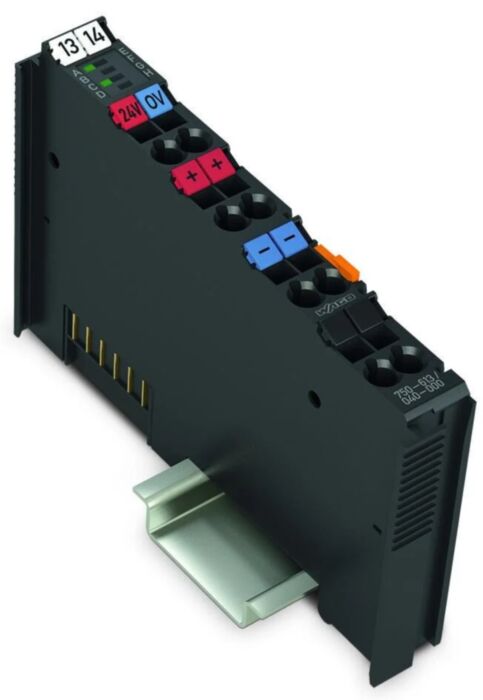

Wago 750-613/040-000 System Power Supply, 24 Vdc

Why Choose the WAGO 750-613/040-000 XTR System Power Supply Module?

The WAGO 750-613/040-000 is a rugged 24 V DC system power supply module designed for the WAGO I/O System 750 XTR. It provides reliable internal system power to downstream modules and ensures stable operation of decentralised automation systems used in demanding industrial environments.

Part of the extreme-condition WAGO automation product range, the XTR series is engineered for applications exposed to vibration, temperature extremes and electrical interference. The module increases the available system current capacity by up to 2 A, making it suitable for I/O nodes with high internal power requirements. :contentReference

The module also distributes 24 V field supply to adjacent modules via integrated power jumper contacts. This design allows engineers to expand automation nodes and maintain stable power distribution across modular PLC and fieldbus systems. :contentReference

Key Advantages

• Provides reliable 24 V DC system supply for WAGO I/O modules.
• Increases available system current capacity by 2 A for high-load I/O nodes.
• Supplies field-side power via jumper contacts to adjacent modules.
• Designed for harsh industrial environments using WAGO XTR technology.
• Compact DIN rail module for high-density control cabinets.
• Compatible with the WAGO I/O System 750 XTR platform.

Key Features

• System power supply module for WAGO I/O System 750 XTR.
• Nominal system voltage: 24 V DC.
• System current increase: up to 2 A additional capacity.
• Field supply distribution via integrated power jumper contacts.
• CAGE CLAMP spring terminals for secure wiring.
• DIN-35 rail mounting for industrial control cabinets.
• Designed for extreme environmental conditions.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 XTR
• Model: 750-613/040-000
• Module type: System power supply module
• System supply voltage: 24 V DC (−25 % to +30 %)
• Additional system current: 2 A
• Field supply voltage: 24 V DC
• Power jumper contact current capacity: up to 10 A
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.25 to 2.5 mm² (AWG 24–14)
• Mounting type: DIN-35 rail
• Width: approx. 12 mm
• Height: approx. 100 mm
• Depth: approx. 69.8 mm
• Operating temperature: −40 °C to +70 °C
• Protection rating: IP20

Industrial Automation Power Distribution

Distributed automation systems rely on modular I/O architectures to connect sensors, actuators and control devices across machines and production lines. System power supply modules ensure that sufficient internal current is available for the electronics of all connected modules within the automation node.

The WAGO 750-613/040-000 increases the internal current capacity of the I/O system and distributes field power to adjacent modules. This allows engineers to expand automation nodes while maintaining stable voltage and reliable communication across the system. :contentReference

Typical Applications

• Distributed PLC and fieldbus I/O systems.
• Industrial machine control panels.
• Energy, marine and transport automation systems.
• Factory automation and production machinery.
• Control cabinets operating in harsh environments.

Trusted by Automation Engineers

WAGO I/O System 750 XTR modules are widely used by automation engineers to build reliable distributed control systems in demanding industrial environments.
