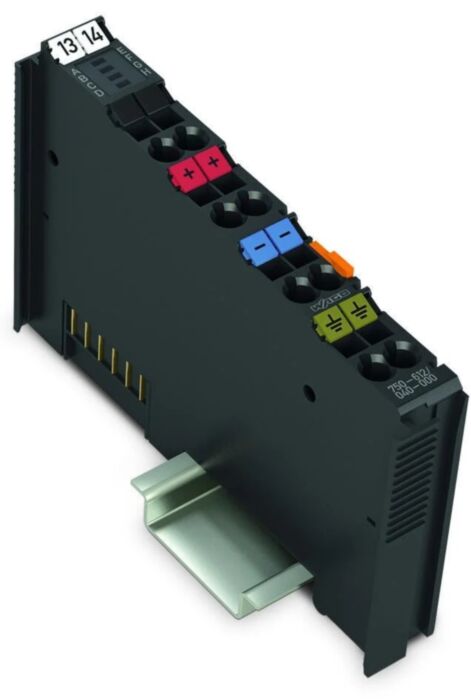

Wago 750-612/040-000 Supply module passive AC/DC 230 V, XTR - Extreme version Dark Gray

Why Choose the WAGO 750-612/040-000 XTR Power Supply Module?

The WAGO 750-612/040-000 is a rugged 0 to 230 V AC/DC power supply module designed for the WAGO I/O System 750 XTR. It supplies the required field-side voltage to connected automation modules, ensuring stable operation of decentralised PLC and fieldbus control systems even in demanding industrial environments.

Part of the WAGO automation product range, the XTR series is engineered specifically for installations exposed to vibration, temperature extremes and electrical interference. The 750-612/040-000 distributes field supply potential to downstream I/O modules through integrated power jumper contacts, enabling efficient power distribution across modular automation nodes.

This module supports a wide 0 to 230 V AC/DC supply voltage and provides up to 10 A total current for connected modules. When higher loads are required, additional supply modules can be added within the assembly to segment power zones and maintain safe operation. :contentReference

Key Advantages

• Supports a wide 0 to 230 V AC/DC field supply for flexible automation installations.
• Provides up to 10 A current capacity for connected I/O modules.
• Designed for the WAGO I/O System 750 XTR used in harsh environments.
• High resistance to temperature extremes, vibration and EMC interference.
• Compact DIN rail module for high-density control cabinet layouts.
• Allows intermediate power injection when expanding distributed I/O assemblies.

Key Features

• Field power supply module for WAGO I/O System 750 XTR.
• Supply voltage range: 0 to 230 V AC/DC.
• Maximum supply current: 10 A.
• Power distribution via internal power jumper contacts.
• CAGE CLAMP spring terminals for secure wiring connections.
• Designed for operation in extreme industrial environments.
• DIN-35 rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 XTR
• Model: 750-612/040-000
• Module type: Field power supply module
• Supply voltage: 0 to 230 V AC/DC
• Maximum current: 10 A
• Outgoing power jumper contacts: 3
• Connection technology: CAGE CLAMP spring terminals
• Wire cross section: approx. 0.25 to 2.5 mm² (AWG 24–14)
• Mounting type: DIN-35 rail
• Width: approx. 12 mm
• Height: approx. 67.8 mm
• Depth: approx. 100 mm
• Operating temperature: −40 °C to +70 °C
• Protection rating: IP20
• Application: Field voltage supply for distributed I/O modules

Industrial Automation Power Distribution

Distributed I/O systems require reliable field-side power distribution to maintain communication between PLC controllers, sensors and actuators across machines and production lines. Supply modules such as the WAGO 750-612/040-000 provide stable voltage to connected modules within the automation node.

The XTR series is specifically designed for installations where standard automation equipment may not be suitable. With extended temperature range, enhanced EMC resistance and improved vibration tolerance, these modules enable reliable automation in transport, energy, marine and heavy industrial applications. :contentReference

Typical Applications

• Distributed PLC and fieldbus I/O systems.
• Industrial machine control panels.
• Transport, marine and energy sector automation.
• Factory automation and process control systems.
• Control cabinets operating in harsh environmental conditions.

Trusted by Automation Engineers

WAGO I/O System 750 XTR modules are widely used by automation engineers to build reliable distributed control systems in demanding industrial environments.
