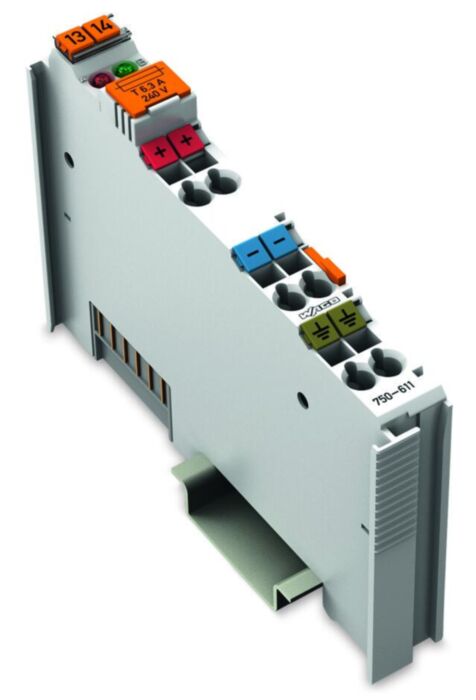

Wago 750-611 Supply Module, With Fuse Holder / Diagnostics 230 Vac
MPN: 750-611
Alt. SKU: 750611
Special Price
£61.97
£51.64
Regular Price
£72.90
Why Choose the WAGO 750-611 Power Supply Module?
The WAGO 750-611 is a reliable 230 V AC power supply module designed for the WAGO I/O System 750. It provides the required field supply voltage to connected automation modules, ensuring stable operation of decentralised control systems used in modern industrial environments.
Part of the modular WAGO automation product range, the module distributes AC field voltage through internal power jumper contacts to downstream I/O modules. This design allows engineers to maintain consistent supply voltage across distributed automation architectures and machine control panels.
The unit includes a replaceable fuse holder and integrated diagnostics. LED indicators show the status of the supply voltage and fuse condition, while diagnostic information can be transmitted to the fieldbus coupler for monitoring and maintenance purposes. :contentReference
Key Advantages
- Provides reliable 230 V AC field supply for WAGO I/O modules.
- Integrated fuse holder protects field supply circuits.
- LED diagnostics indicate supply status and fuse condition.
- Diagnostic signals can be transmitted to the fieldbus coupler.
- Compact DIN rail module for high-density control cabinets.
- Compatible with the modular WAGO I/O System 750.
Key Features
- Power supply module for WAGO I/O System 750.
- 230 V AC field supply input.
- Maximum current via power jumper contacts: approx. 6.3 A.
- Replaceable 5 × 20 mm fuse holder.
- LED indicators for voltage status and fuse fault.
- 2 diagnostic bits transmitted to the fieldbus coupler.
- DIN rail mounting with CAGE CLAMP spring connections.
Technical Specifications
- Manufacturer: WAGO
- Series: WAGO I/O System 750
- Model: 750-611
- Module type: Field supply power module
- Nominal supply voltage: 230 V AC
- Voltage range: approx. 195.5 to 253 V AC
- Maximum current: approx. 6.3 A
- Fuse type: 5 × 20 mm (T 6.3 A, not included)
- Connection technology: CAGE CLAMP spring terminals
- Wire cross-section: 0.08 to 2.5 mm²
- Mounting type: DIN-35 rail
- Dimensions: approx. 12 mm width, 100 mm height
- Protection rating: IP20
- Operating temperature: approx. 0 °C to +55 °C
- Application: Distributed I/O system power distribution
Industrial Automation Power Distribution
Distributed I/O systems require stable power supply modules to ensure sensors, actuators and control electronics operate reliably. Supply modules within modular PLC architectures distribute field voltage to connected modules through integrated power jumper contacts.
The WAGO 750-611 enables engineers to provide AC field supply within a WAGO I/O assembly while maintaining diagnostic monitoring and circuit protection through its integrated fuse holder and status indicators. :contentReference
Typical Applications
- Distributed automation systems using WAGO I/O System 750.
- Machine control and PLC installations.
- Industrial production and process automation.
- Control cabinet I/O power distribution.
- Automation systems requiring AC field supply for I/O modules.
Frequently Asked Questions
What is the WAGO 750-611 used for?
The 750-611 supplies 230 V AC field voltage to modules within the WAGO I/O System 750, enabling connected automation devices to receive power through the I/O assembly.
What protection does the module provide?
The module includes a replaceable 5 × 20 mm fuse holder that protects the field supply circuit from overcurrent conditions.
What diagnostics are available?
Status LEDs indicate the supply voltage and fuse condition. Diagnostic information is also transmitted to the fieldbus coupler via two status bits.
How much current can the module supply?
The power supply module can distribute up to approximately 6.3 A through the power jumper contacts within the I/O assembly.
How is the module installed?
The 750-611 mounts directly onto a DIN-35 rail and connects to adjacent I/O modules through the WAGO modular system bus.
Trusted by Automation Engineers
WAGO I/O System 750 modules are widely trusted by automation engineers for building flexible, scalable and reliable industrial control systems.
| Manufacturer Part Number | 750-611 |
|---|---|
| Height | 104mm |
| Width | 20mm |
| Depth | 74mm |
| Manufacturer | Wago |
| Packed Quantity | 1 |
| HS Code | 85389091 |
| Barcode | 4045454535186 |
| Country of Manufacture | Germany |
| Alternative Product SKU | 750611 |
