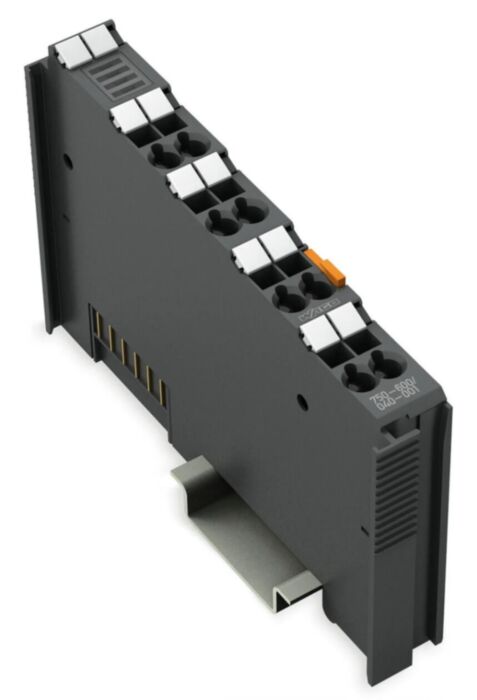

Wago 750-600/040-000 End module, XTR - Extreme version Dark Gray

Why Choose the WAGO 750-600/040-000 End Module?

The WAGO 750-600/040-000 is a dedicated end module for the WAGO I/O System 750 and 753, designed to terminate the internal system bus and complete a modular distributed I/O assembly. Installed at the end of a WAGO node, it ensures correct electrical termination and stable communication between fieldbus couplers, PLC controllers and connected I/O modules.

As a passive system component, the end module requires no configuration or addressing. It simply snaps onto the DIN rail after the final I/O module, completing the I/O station and ensuring reliable system operation across industrial automation installations.

The module integrates seamlessly with WAGO’s modular distributed automation platform and provides a compact, maintenance-free solution for completing I/O nodes in control cabinets and automation systems.

Key Advantages

• Essential termination module for WAGO I/O nodes.
• Ensures correct internal system bus termination.
• Quick snap-on DIN rail installation.
• Compact design suitable for dense control cabinets.
• Passive device requiring no configuration.
• Fully compatible with the WAGO I/O System 750 and 753.

Key Features

• End module for distributed I/O stations.
• Terminates the internal system bus.
• No programming or addressing required.
• Compact industrial DIN rail design.
• Simple installation after the last I/O module.
• Maintenance-free operation.
• Designed for industrial automation systems.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-600/040-000
• Module type: End module
• Function: System bus termination
• Configuration: Not required
• System supply: Via internal system bus
• Mounting: 35 mm DIN rail
• Connection: Internal system bus interface
• Dimensions: approx. 100 × 12 × 69 mm
• Operating temperature: 0 °C to 55 °C
• Protection rating: IP20
• Approvals: CE and international industrial approvals

Essential Component of WAGO Distributed I/O Systems

The WAGO I/O System 750 is a modular distributed automation platform used across industrial control systems, machine automation and building management installations. Each node is built using a fieldbus coupler or controller followed by digital or analogue I/O modules.

The 750-600/040-000 end module must be installed at the end of each node to terminate the internal system bus and ensure reliable communication between modules. Without this component, the I/O assembly cannot be correctly completed.

Typical Applications

• Industrial automation control panels.
• Distributed PLC I/O installations.
• Machine automation systems.
• Process control installations.
• Building automation and facility management.

Trusted by Automation Engineers

WAGO distributed I/O systems are trusted worldwide by automation engineers for their modular flexibility, reliable communication and robust industrial design.
