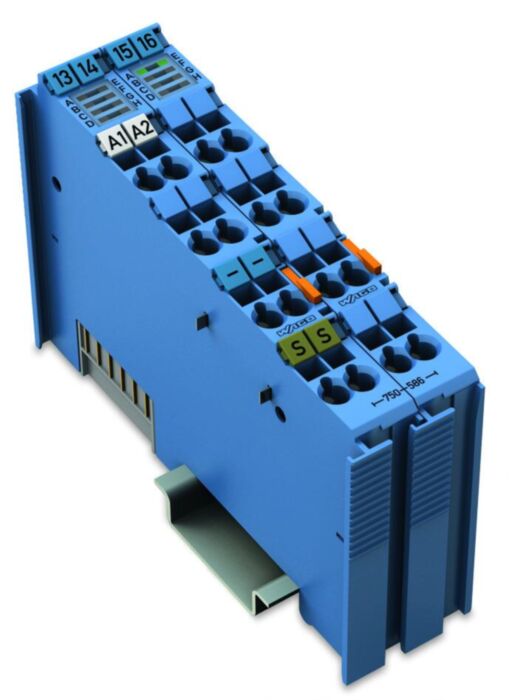

Wago 750-586 2Ao, 2-4-Wire

Why Choose the WAGO 750-586 Analog Output Module?

The WAGO 750-586 is a high precision 2-channel analogue output module designed for the WAGO I/O System 750 and 753 distributed automation platform. It converts digital control data from PLCs and fieldbus controllers into accurate 4–20 mA analogue current signals, enabling precise control of industrial process equipment.

The module is commonly used in process automation environments where stable current loop signals are required for controlling actuators, control valves, drives and instrumentation devices. Its design ensures reliable signal transmission and electrical isolation between control electronics and field circuits.

The module installs easily on a standard 35 mm DIN rail and integrates seamlessly with other WAGO I/O modules through the system bus. WAGO’s proven CAGE CLAMP® spring pressure connection technology ensures fast wiring, vibration resistant connections and long-term reliability in industrial control systems.

Key Advantages

• 2 analogue output channels for precise process control.
• 4–20 mA current loop outputs widely used in industrial instrumentation.
• High accuracy analogue signal conversion.
• Galvanic isolation between control system and field devices.
• Compatible with the WAGO I/O System 750 and 753.
• CAGE CLAMP® spring pressure terminals for secure maintenance-free wiring.

Key Features

• 2-channel analogue output module.
• Output signal range: 4–20 mA.
• High resolution analogue conversion.
• Short-circuit protected outputs.
• Status LEDs for channel monitoring.
• DIN rail mounting for industrial control panels.
• Part of the modular WAGO distributed I/O architecture.
• Designed for industrial automation and process control applications.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-586
• Module type: Analogue output module
• Number of outputs: 2 analogue outputs
• Output signal: 4–20 mA DC
• Resolution: approx. 12-bit
• Conversion time: < 2 ms
• Load impedance: up to approx. 500 Ω
• System supply voltage: 5 V DC via system bus
• Field supply: 24 V DC via power jumper contacts
• Connection technology: CAGE CLAMP® spring connection
• Mounting: 35 mm DIN rail
• Dimensions: approx. 100 × 24 × 67.8 mm
• Protection rating: IP20
• Operating temperature: −20 °C to +60 °C
• Approvals: CE, UL and international industrial certifications

Reliable 4–20 mA Control in Industrial Automation

The 4–20 mA current loop is one of the most widely used signalling standards in industrial automation and process control. Modules such as the WAGO 750-586 allow PLCs and control systems to generate accurate analogue signals for regulating valves, actuators and instrumentation devices across production plants and process installations.

When integrated into the WAGO modular I/O platform, the module supports scalable distributed automation systems used across manufacturing, energy, water treatment and building automation environments.

Typical Applications

• Industrial process automation systems.
• Control of valves and actuators.
• PLC controlled analogue current loops.
• Instrumentation and process equipment control.
• Energy management and building automation.

Trusted by Automation Engineers

WAGO analogue output modules are trusted by industrial automation engineers for precise current loop control, reliable distributed I/O integration and robust operation in demanding process environments.
