Why Choose the WAGO 750-585 Analog Output Module?

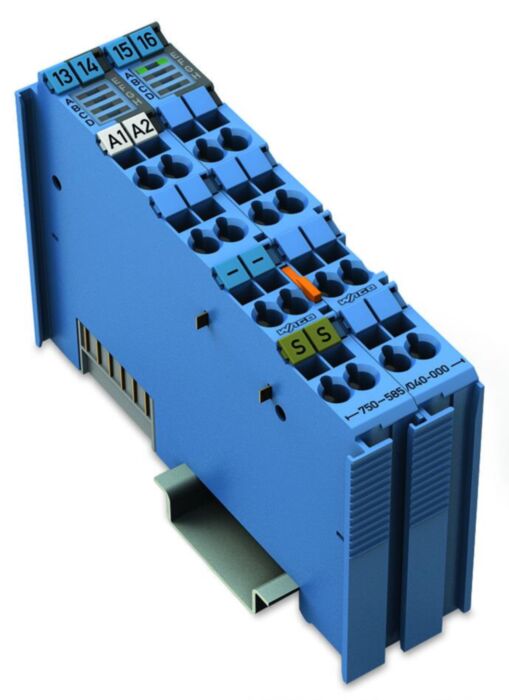

The WAGO 750-585 is a 2-channel analogue output module designed for the WAGO I/O System 750 and 753 distributed automation platform. It provides intrinsically safe 0–20 mA analogue output signals, enabling PLCs and controllers to control field devices located in hazardous areas such as Zone 0 and Zone 1. :contentReference

The module converts digital control signals from the PLC into precise analogue current outputs for controlling process equipment including valves, actuators and transmitters. Its intrinsically safe design allows reliable signal transmission into hazardous environments while maintaining safe electrical isolation between the control system and field circuits. :contentReference

Integrated into the modular WAGO I/O System 750 architecture, the module installs easily on DIN rail and connects through the system bus to couplers or controllers. WAGO’s proven CAGE CLAMP® spring pressure connection technology ensures fast wiring, vibration-resistant connections and long-term operational reliability in industrial automation systems.

Key Advantages

• 2 analogue output channels for process control signals.
• 0–20 mA intrinsically safe outputs for hazardous areas.
• Supports devices located in Zone 0 and Zone 1 environments.
• Galvanic isolation between system and field circuits.
• Short-circuit protected outputs for reliable operation.
• Compatible with the WAGO I/O System 750 and 753.

Key Features

• 2-channel analogue output module.
• Current output range: 0…20 mA.
• Intrinsically safe signal transmission for hazardous zones.
• Resolution: approx. 12-bit analogue output.
• Conversion time: less than 2 ms.
• Green LED indicators for channel status.
• CAGE CLAMP® spring connection terminals.
• DIN rail mounting for industrial control cabinets.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-585
• Module type: Analogue output module
• Number of outputs: 2 analogue outputs
• Output signal: 0…20 mA DC
• Resolution: 12-bit
• Conversion time: < 2 ms
• Load impedance: < 500 Ω
• System supply voltage: 5 V DC via internal system bus
• Field supply: 24 V DC via power jumper contacts
• Connection technology: CAGE CLAMP® spring connection
• Mounting: 35 mm DIN rail
• Dimensions: approx. 100 × 24 × 67.8 mm
• Protection rating: IP20
• Approvals: ATEX, IECEx, UL and international certifications

Analogue Control in Hazardous Areas

Analogue output modules play an essential role in process automation systems by converting PLC commands into analogue signals that control actuators, control valves and instrumentation. Modules like the WAGO 750-585 are designed specifically for intrinsically safe applications, enabling accurate signal transmission into hazardous zones while maintaining system safety and reliability. :contentReference

Combined with WAGO fieldbus couplers and controllers, the module forms part of a scalable distributed automation system capable of supporting modern industrial processes, energy systems and hazardous-area installations.

Typical Applications

• Process automation and chemical plants.
• Control of intrinsically safe field devices.
• Industrial instrumentation and actuators.
• Hazardous area control systems.
• Building and energy management systems.

Trusted by Process Automation Engineers

WAGO analogue output modules are widely used in industrial automation systems where accurate analogue control signals and safe operation in hazardous environments are required.
