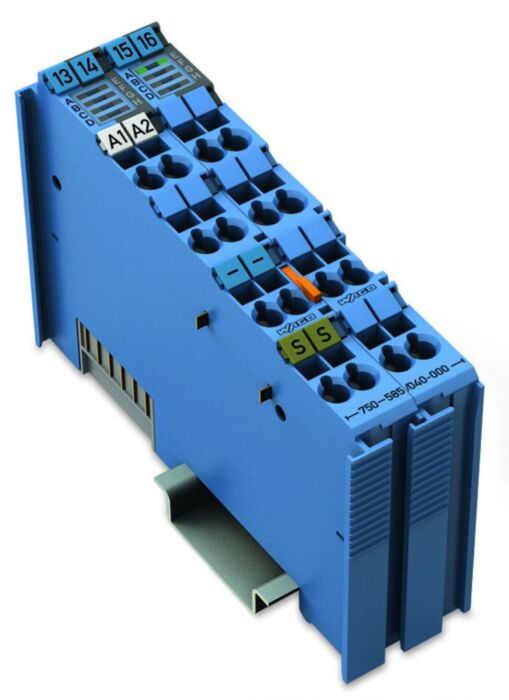

Wago 750-585/040-000 2-channel analog output module 0-20 mA Ex i Cat. Ia, XTR - Extreme version Dark Blue

Why Choose the WAGO 750-585/040-000 Analog Output Module?

The WAGO 750-585/040-000 is a high precision 2-channel analogue output module designed for the WAGO I/O System 750 and 753 distributed automation platform. It converts digital PLC commands into accurate 0–20 mA analogue current signals, enabling precise control of field devices in process automation environments.

Designed for industrial control systems that require dependable analogue signal transmission, the module provides intrinsically safe outputs suitable for installations where reliable current loop control is essential. Typical connected equipment includes control valves, actuators, drives and process instrumentation.

The module integrates seamlessly into the modular WAGO I/O architecture and installs on a standard 35 mm DIN rail. WAGO’s proven CAGE CLAMP® spring pressure connection technology allows quick wiring, vibration resistant connections and long term operational reliability in demanding industrial environments.

Key Advantages

• 2 analogue output channels for process control signals.
• 0–20 mA current outputs for precise analogue control.
• High signal accuracy for industrial process automation.
• Galvanic isolation between system electronics and field circuits.
• Fully compatible with the WAGO I/O System 750 and 753.
• CAGE CLAMP® spring terminals for secure and maintenance free wiring.

Key Features

• 2-channel analogue output module.
• Output signal: 0–20 mA.
• High resolution analogue conversion.
• Short circuit protected outputs.
• Status LEDs for channel indication.
• DIN rail mounting for industrial control cabinets.
• Part of the modular WAGO distributed I/O architecture.
• Designed for industrial automation and process control systems.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-585/040-000
• Module type: Analogue output module
• Number of outputs: 2 analogue outputs
• Output signal: 0–20 mA DC
• Resolution: approx. 12-bit
• Conversion time: < 2 ms
• Load impedance: up to approx. 500 Ω
• System supply voltage: 5 V DC via system bus
• Field supply: 24 V DC via power jumper contacts
• Connection technology: CAGE CLAMP® spring connection
• Mounting: 35 mm DIN rail
• Dimensions: approx. 100 × 24 × 67.8 mm
• Protection rating: IP20
• Operating temperature: −20 °C to +60 °C
• Approvals: CE, UL and international industrial certifications

Precision Analogue Control for Industrial Automation

Analogue output modules are essential in industrial automation systems where PLC controllers must regulate equipment using current loop signals. Modules such as the WAGO 750-585/040-000 convert digital control values into stable current outputs used to control actuators, process valves and instrumentation.

Integrated with WAGO fieldbus couplers and controllers, the module forms part of a scalable distributed control architecture used across manufacturing plants, energy systems and process automation installations.

Typical Applications

• Industrial process automation systems.
• Control of actuators and control valves.
• PLC controlled analogue current loops.
• Instrumentation and process equipment control.
• Energy and building automation systems.

Trusted by Automation Engineers

WAGO analogue output modules are widely used in industrial automation systems where precise current loop control and reliable distributed I/O integration are required.
