Wago 750-564 4AO conf U/I

Why Choose the WAGO 750-564 Relay Output Module?

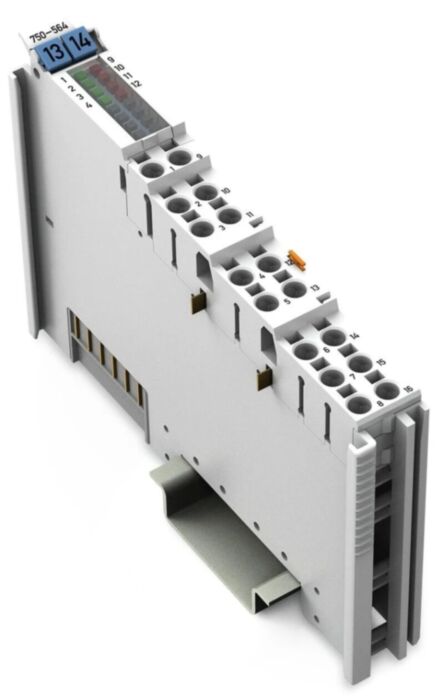

The WAGO 750-564 is a reliable 8-channel relay output module designed for use within the WAGO I/O System 750 and 753 distributed automation platform. It enables PLCs and fieldbus controllers to switch AC or DC loads through mechanical relay contacts, providing a dependable interface between low voltage control signals and external electrical circuits.

Each channel provides a potential free relay contact, allowing the module to control equipment such as contactors, motors, solenoid valves, pumps, alarms and signalling devices. This flexibility makes the module suitable for industrial automation, machine control systems and building management applications requiring reliable electrical load switching.

The module’s compact DIN rail design integrates easily into distributed I/O assemblies and control cabinets. WAGO’s proven CAGE CLAMP® spring pressure connection technology ensures fast wiring, secure connections and vibration resistant performance, delivering long term reliability in demanding industrial environments.

Key Advantages

• 8 relay output channels for switching multiple field devices.
• Potential free relay contacts suitable for AC and DC switching.
• Provides galvanic isolation between PLC control electronics and external loads.
• Compact DIN rail module for efficient cabinet layouts.
• CAGE CLAMP® spring pressure terminals for quick and reliable wiring.
• Fully compatible with the WAGO I/O System 750 and 753.

Key Features

• 8-channel relay output module.
• Potential free relay contacts.
• Mechanical relay switching for AC and DC loads.
• Electrical isolation between control electronics and field circuits.
• DIN rail mounting for industrial control cabinets.
• CAGE CLAMP® spring connection technology.
• Part of the WAGO distributed I/O architecture.
• Designed for industrial automation and building control systems.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-564
• Module type: Relay output module
• Number of outputs: 8 relay outputs
• Contact type: Potential free relay contacts
• Maximum switching voltage: approx. 250 V AC / 30 V DC
• Maximum switching current: approx. 2 A per channel
• Switching type: Mechanical relay
• System supply voltage: 5 V DC via internal system bus
• Connection technology: CAGE CLAMP® spring connection
• Mounting type: 35 mm DIN rail
• Dimensions: approx. 100 × 24 × 67.8 mm
• Operating temperature: -20 °C to +60 °C
• Protection rating: IP20
• Isolation: galvanic isolation between system and field circuits
• Approvals: CE, UL and international industrial approvals

Reliable Distributed Automation with WAGO I/O

The WAGO I/O System 750/753 is widely used across industrial automation, machine building and building management installations. Its modular design allows digital, analogue and communication modules to be combined to create scalable distributed control systems.

Relay output modules such as the 750-564 provide a dependable interface for switching higher voltage loads and isolating PLC electronics from field equipment. Mechanical relay contacts ensure stable and safe operation across automation systems.

Typical Applications

• Industrial automation control systems.
• PLC controlled relay switching.
• Machine control and manufacturing equipment.
• Switching AC loads and higher voltage circuits.
• Alarm and signalling equipment.
• Building automation and facility management systems.

Trusted by Automation Engineers

WAGO relay output modules are trusted worldwide by machine builders and automation engineers for reliable switching performance, electrical isolation and seamless integration within distributed industrial control systems.
