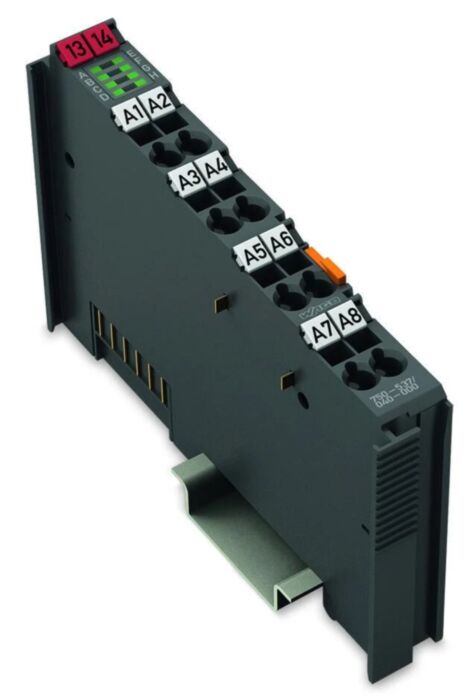

Wago 750-537/040-000 8DO 24VDC 0.5amp Extreme

Why Choose the WAGO 750-537/040-000 Digital Output Module?

The WAGO 750-537/040-000 is a compact 8-channel digital output module designed for the WAGO I/O System 750 and 753 distributed automation platform. It enables PLCs and fieldbus controllers to reliably switch relays, solenoids, indicator lamps and other field devices within decentralised automation architectures.

Each channel provides dependable 24 V DC switching with up to 0.5 A output current, making the module suitable for controlling standard industrial loads and PLC-driven automation equipment. Its slim 12 mm module width allows high channel density within control cabinets, helping machine builders optimise space while maintaining reliable system performance.

The module incorporates WAGO’s proven CAGE CLAMP® spring pressure connection technology, enabling fast installation and vibration-resistant wiring. This maintenance-free connection system ensures long-term reliability in demanding industrial environments and reduces installation time during panel assembly.

Key Advantages

• 8 digital output channels for industrial automation control.
• 24 V DC switching outputs compatible with PLC control systems.
• 0.5 A output current per channel for typical automation loads.
• Compact 12 mm module width enabling high-density I/O configurations.
• CAGE CLAMP® spring pressure terminals for fast, reliable wiring.
• Fully compatible with the WAGO I/O System 750 and 753.

Key Features

• 8-channel digital output module.
• 24 V DC output voltage.
• Maximum 0.5 A output current per channel.
• High-side switching outputs.
• Integrated short-circuit protection.
• Compact 12 mm DIN rail module.
• CAGE CLAMP® spring connection technology.
• Designed for integration within the WAGO distributed I/O architecture.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-537/040-000
• Module type: Digital output module
• Number of outputs: 8 digital outputs
• Output voltage: 24 V DC
• Output current per channel: up to 0.5 A
• Switching type: High-side switching
• Switching frequency: up to approx. 2 kHz
• System supply voltage: 5 V DC via internal system bus
• Connection technology: CAGE CLAMP® spring connection
• Mounting type: 35 mm DIN rail
• Module width: 12 mm
• Dimensions: approx. 100 × 12 × 67.8 mm
• Operating temperature: -20 °C to +60 °C
• Protection rating: IP20
• Isolation voltage: approx. 500 V system/field
• Approvals: CE, UL and international industrial approvals

Reliable Distributed Automation with WAGO I/O

The WAGO I/O System 750/753 provides a flexible distributed automation platform used across machine control, process automation and factory production systems. The modular design allows digital, analogue and communication modules to be combined to create scalable industrial control architectures.

Digital output modules such as the 750-537/040-000 transmit switching signals from PLC controllers to field devices. Their compact design and reliable switching performance make them ideal for industrial environments requiring dependable signal control and efficient cabinet layouts.

Typical Applications

• Industrial automation control panels.
• PLC-based machine control systems.
• Distributed I/O installations.
• Driving relays, solenoids and indicator lights.
• Factory automation and production lines.
• Packaging, robotics and material handling systems.

Trusted by Automation Engineers

WAGO distributed I/O modules are trusted worldwide by machine builders and automation engineers for reliable operation, flexible configuration and compact installation within industrial control systems.
