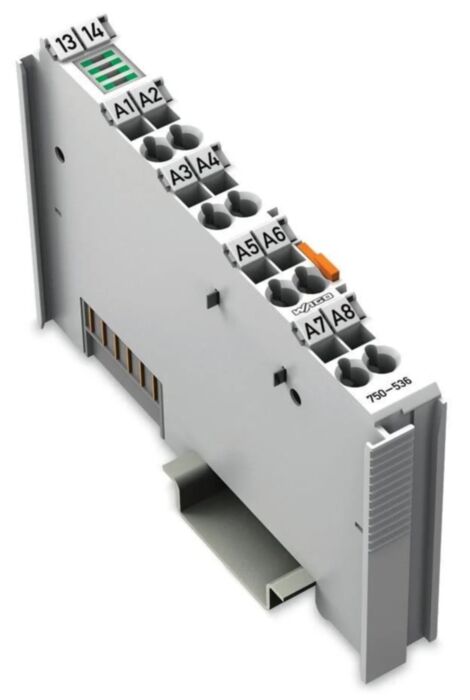

Wago 750-536 8Do, 24 Vdc 0.5A Lss

Why Choose the WAGO 750-536 Digital Output Module?

The WAGO 750-536 is a high-current 8-channel digital output module designed for use within the WAGO I/O System 750 and 753 distributed automation platform. It enables PLCs and fieldbus controllers to switch industrial devices such as relays, solenoids, valves, contactors and signalling equipment within modern control systems.

Each output channel provides reliable 24 V DC switching with up to 2 A output current, allowing the module to control higher-power loads directly from the distributed I/O system. Its compact 12 mm width allows high channel density while maintaining efficient heat dissipation in control cabinets.

The module features WAGO’s trusted CAGE CLAMP® spring pressure connection technology, providing fast installation, vibration resistance and maintenance-free connections. This ensures dependable operation in demanding industrial environments and simplifies wiring for panel builders and automation engineers.

Key Advantages

• 8 digital output channels for industrial automation control.
• 24 V DC switching outputs compatible with PLC control systems.
• Up to 2 A output current per channel for higher-power loads.
• Compact 12 mm housing enabling high I/O density.
• CAGE CLAMP® spring connection technology for secure wiring.
• Fully compatible with the WAGO I/O System 750 and 753.

Key Features

• 8-channel digital output module.
• 24 V DC output voltage.
• 2 A maximum output current per channel.
• High-side switching outputs.
• Integrated short-circuit and overload protection.
• Compact 12 mm DIN rail module.
• CAGE CLAMP® spring pressure terminals.
• Designed for the WAGO distributed I/O architecture.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-536
• Module type: Digital output module
• Number of outputs: 8 digital outputs
• Output voltage: 24 V DC
• Output current per channel: up to 2 A
• Switching type: High-side switching
• Switching frequency: up to approx. 1 kHz
• System supply voltage: 5 V DC via internal system bus
• Connection technology: CAGE CLAMP® spring connection
• Mounting type: 35 mm DIN rail
• Module width: 12 mm
• Dimensions: approx. 100 × 12 × 67.8 mm
• Operating temperature: -20 °C to +60 °C
• Protection rating: IP20
• Isolation voltage: approx. 500 V system/field
• Approvals: CE, UL and international industrial certifications

Reliable Distributed Automation with WAGO I/O

The WAGO I/O System 750/753 is a flexible distributed automation platform widely used in machine control, process automation and factory systems. Its modular design allows digital, analogue and communication modules to be combined to build scalable automation architectures.

Digital output modules such as the 750-536 provide reliable switching signals from PLC controllers to field devices. Their high current capability and robust construction make them suitable for demanding industrial automation environments where dependable switching performance is essential.

Typical Applications

• Industrial automation control panels.
• PLC-based machine control systems.
• Distributed I/O architectures.
• Driving relays, solenoids and contactors.
• Production lines and manufacturing equipment.
• Packaging, robotics and material handling systems.

Trusted by Automation Engineers

WAGO distributed I/O modules are trusted worldwide by machine builders and automation engineers for reliable operation, flexible system expansion and compact control cabinet installation.
