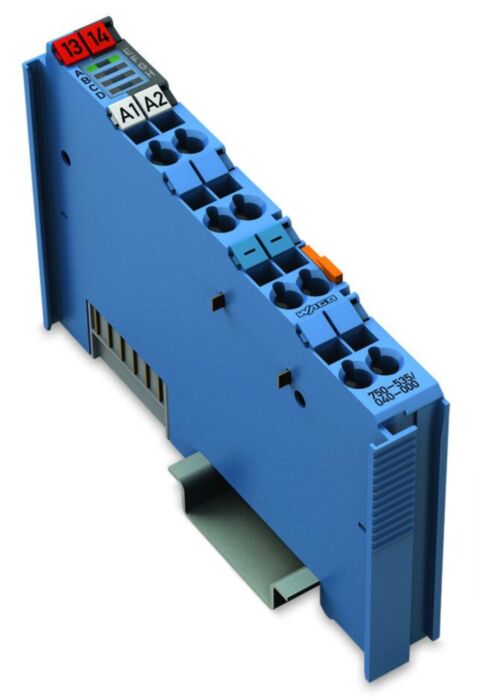

Wago 750-535/040-000 2-channel digital output module 24 VDC Ex i Cat. ib short-circuit protected for DIN 35 rail CAGE CLAMPCONNECTION, XTR - Extreme version Dark Blue

Why Choose the WAGO 750-535/040-000 Digital Output Module?

The WAGO 750-535/040-000 is a reliable 8-channel digital output module designed for integration with the WAGO I/O System 750 and 753 distributed automation platform. It enables PLCs and fieldbus controllers to control relays, solenoids, contactors and other industrial loads within modern automation systems.

Each output channel provides 24 V DC switching with up to 0.5 A output current, making the module ideal for standard automation loads and PLC-controlled field devices. The module’s compact 12 mm housing allows high I/O density within control cabinets, helping machine builders optimise space and improve panel design efficiency.

Built using WAGO’s proven CAGE CLAMP® spring pressure connection technology, the module allows fast installation and vibration-resistant wiring. This maintenance-free connection system ensures long-term reliability in demanding industrial environments while reducing installation time for control panel builders.

Key Advantages

• 8 digital output channels for industrial automation control.
• 24 V DC switching outputs compatible with PLC control systems.
• 0.5 A output current per channel for typical industrial loads.
• Compact 12 mm width enabling high-density I/O installations.
• CAGE CLAMP® spring terminals for secure and vibration-resistant wiring.
• Fully compatible with the WAGO I/O System 750 and 753.

Key Features

• 8-channel digital output module.
• 24 V DC output voltage.
• Maximum 0.5 A output current per channel.
• High-side switching outputs.
• Integrated short-circuit protection.
• Compact 12 mm DIN rail module.
• CAGE CLAMP® spring connection technology.
• Designed for integration into the WAGO distributed I/O architecture.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-535/040-000
• Module type: Digital output module
• Number of outputs: 8 digital outputs
• Output voltage: 24 V DC
• Output current per channel: up to 0.5 A
• Switching type: High-side switching
• Switching frequency: up to approx. 2 kHz
• System supply voltage: 5 V DC via internal system bus
• Connection technology: CAGE CLAMP® spring connection
• Mounting type: 35 mm DIN rail
• Module width: 12 mm
• Dimensions: approx. 100 × 12 × 67.8 mm
• Operating temperature: -20 °C to +60 °C
• Protection rating: IP20
• Isolation voltage: approx. 500 V system/field
• Approvals: CE, UL and international industrial certifications

Reliable Distributed Automation with WAGO I/O

The WAGO I/O System 750/753 is widely used in distributed automation architectures where sensors and actuators are located close to machinery. The modular design allows flexible combinations of digital, analogue and communication modules to build scalable industrial automation systems.

Digital output modules such as the 750-535/040-000 provide reliable switching signals from PLC controllers to field devices. Their compact design and robust connection technology make them ideal for modern automation systems and machine control applications.

Typical Applications

• Industrial automation control panels.
• PLC-based machine control systems.
• Distributed I/O architectures.
• Driving relays, contactors and solenoids.
• Factory automation and production lines.
• Packaging, robotics and material handling equipment.

Trusted by Automation Engineers

WAGO distributed I/O modules are trusted worldwide by automation engineers and machine builders for their reliability, modular architecture and compact design in industrial control systems.
