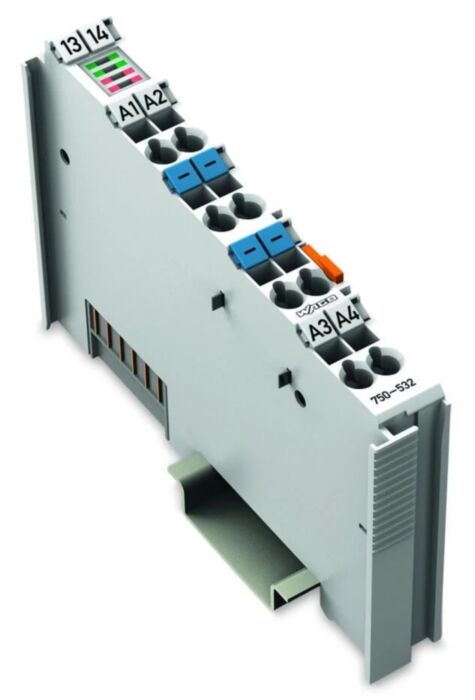

Wago 750-532 4Do, 24 Vdc 0.5A Diagn

Why Choose the WAGO 750-532 Digital Output Module?

The WAGO 750-532 is a reliable 4-channel digital output module designed for integration with the WAGO I/O System 750 and 753 decentralised automation platform. It enables PLCs and fieldbus controllers to control industrial devices such as relays, contactors, solenoids and indicator lamps across modern automation systems.

Each output channel provides 24 V DC switching with up to 2 A output current, allowing the module to drive higher-power loads than standard digital output modules. Its compact 12 mm width enables high I/O density while maintaining excellent thermal performance and reliable switching in control cabinets.

The module uses WAGO’s trusted CAGE CLAMP® spring pressure connection technology, ensuring fast installation, secure wiring and excellent vibration resistance. Built for industrial reliability, the module offers robust protection and dependable performance in demanding automation environments.

Key Advantages

• 4 digital output channels for industrial automation control.
• 24 V DC switching outputs compatible with standard PLC systems.
• Up to 2 A output current per channel for higher load devices.
• Compact 12 mm module width for high-density installations.
• CAGE CLAMP® spring connection technology for secure wiring.
• Seamless integration with the WAGO I/O System 750 and 753.

Key Features

• 4-channel digital output module.
• 24 V DC output voltage.
• 2 A maximum output current per channel.
• High-side switching outputs.
• Compact 12 mm DIN rail housing.
• CAGE CLAMP® spring terminals.
• Integrated into the WAGO distributed I/O architecture.
• Designed for demanding industrial automation systems.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750 / 753
• Model: 750-532
• Module type: Digital output module
• Number of outputs: 4 digital outputs
• Output voltage: 24 V DC
• Output current per channel: up to 2 A
• Switching type: High-side switching
• Switching frequency: up to approx. 1 kHz
• System supply voltage: 5 V DC via internal system bus
• Connection technology: CAGE CLAMP® spring connection
• Mounting type: 35 mm DIN rail
• Module width: 12 mm
• Dimensions: approx. 100 × 12 × 67.8 mm
• Operating temperature: -20 °C to +60 °C
• Protection rating: IP20
• Isolation voltage: approx. 500 V system/field
• Approvals: CE, UL and international industrial approvals

Reliable Distributed Automation with WAGO I/O

The WAGO I/O System 750/753 provides a modular distributed I/O platform widely used in machine control, process automation and factory systems. The system allows flexible combinations of digital, analogue and communication modules to build scalable automation architectures.

Digital output modules such as the 750-532 are responsible for switching control signals from PLCs to field devices. Their compact size, high current capability and reliable connection technology make them ideal for controlling industrial loads in modern automation installations.

Typical Applications

• Industrial machine control panels.
• PLC-based automation systems.
• Distributed I/O installations.
• Driving relays, contactors and solenoids.
• Factory automation and production lines.
• Packaging machinery and material handling equipment.

Trusted by Automation Engineers

WAGO distributed I/O modules are trusted worldwide by machine builders and system integrators for their reliability, compact design and flexible automation system integration.
