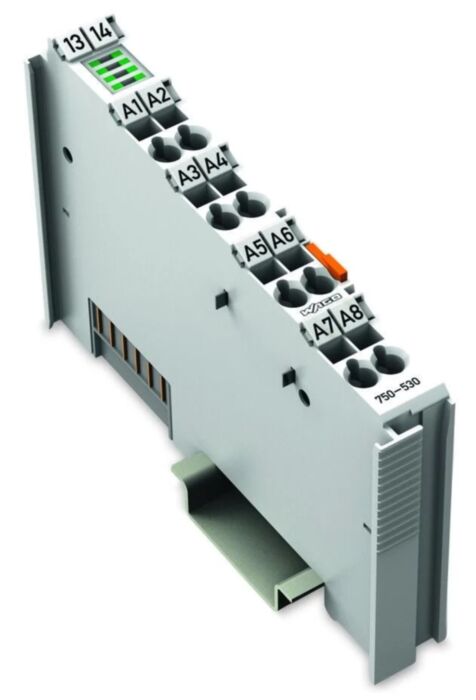

Wago 750-530 8Do, 24 Vac/Vdc 0.5A

Why Choose the WAGO 750-530 Digital Output Module?

The WAGO 750-530 is a high-performance 8-channel digital output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to switch field devices such as relays, contactors, solenoid valves and signalling equipment within distributed automation systems.

Each output channel provides a 24 V DC high-side switching output capable of supplying up to 2 A per channel. The module includes integrated protection features such as short-circuit and overload protection, ensuring reliable operation and helping protect field wiring and connected devices.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers, forming part of the flexible WAGO 750 distributed I/O platform. Its compact DIN rail housing and CAGE CLAMP® spring terminal technology allow fast installation and secure wiring within industrial control cabinets.

Key Advantages

• 8 digital output channels for compact control of multiple devices.
• 24 V DC high-side switching outputs.
• Up to 2 A switching current per channel.
• Short-circuit and overload protection for improved reliability.
• Compatible with WAGO 750 Series distributed I/O systems.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 8 digital output channels.
• Output voltage: 24 V DC.
• Output type: high-side switching.
• Maximum output current: 2 A per channel.
• Integrated overload and short-circuit protection.
• Status LEDs indicate output state.
• Compatible with WAGO fieldbus couplers and programmable controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-530
• Module type: Digital output module
• Number of outputs: 8 digital channels
• Output voltage: 24 V DC
• Output type: High-side switching
• Maximum output current: 2 A per channel
• Protection: Short-circuit and overload protection
• Isolation: Electrical isolation between system and field
• System supply voltage: 5 V DC via internal I/O bus
• Field supply voltage: 24 V DC
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 24 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Digital Output Control

Digital output modules form the interface between PLC control logic and physical field devices within industrial automation systems. They convert controller signals into switching outputs used to operate relays, valves, actuators and signalling devices.

The WAGO 750-530 provides high-current switching capability across multiple output channels, enabling compact and efficient control of industrial loads. When integrated into the WAGO 750 distributed I/O platform, it supports scalable automation architectures for machine control and process automation.

Typical Applications

• PLC control of relays and contactors.
• Solenoid valve and actuator switching.
• Industrial signalling and indicator systems.
• Machine automation equipment.
• Distributed PLC and remote I/O installations.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted by automation engineers worldwide for building flexible and reliable distributed automation systems in industrial environments.
