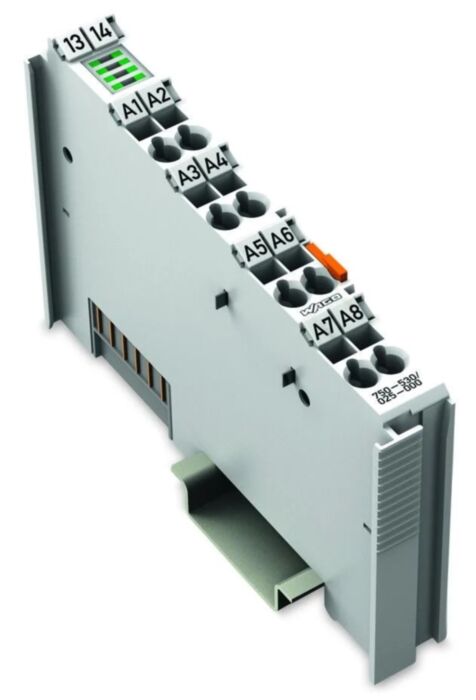

Wago 750-530/025-000 8 - Channel 24 V Dc, 0.5A Output Terminal - Extended Temperature

Why Choose the WAGO 750-530/025-000 Digital Output Module?

The WAGO 750-530/025-000 is a compact 8-channel digital output module designed for integration within the WAGO I/O System 750/753 decentralised automation platform. It enables PLCs and fieldbus controllers to transmit control signals to actuators, solenoids and other field devices in industrial automation systems.

Operating with 24 V DC outputs and up to 0.5 A per channel, the module provides reliable switching for a wide range of automation devices. Its high channel density within a slim 12 mm housing allows machine builders and panel designers to maximise I/O capacity while saving DIN rail space in control cabinets.

The module uses WAGO’s proven CAGE CLAMP® spring connection technology, providing vibration-resistant, maintenance-free wiring for solid and fine-stranded conductors. It is suitable for demanding industrial environments and supports extended temperature operation for reliable performance across diverse applications. :contentReference

Key Advantages

• 8 digital output channels for controlling actuators and field devices.
• 24 V DC output switching with up to 0.5 A per channel.
• Compact 12 mm width maximises I/O density in control panels.
• CAGE CLAMP® spring terminals for fast, vibration-resistant wiring.
• Short-circuit-protected outputs for improved reliability.
• Designed for seamless integration within the WAGO I/O System 750/753.

Key Features

• 8-channel digital output module.
• 24 V DC output voltage.
• 0.5 A maximum output current per channel.
• High-side switching outputs.
• Compact 12 mm module width.
• DIN rail mounting for control cabinets.
• CAGE CLAMP® spring terminals for secure wiring.
• Compatible with the WAGO 750/753 remote I/O system.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750/753
• Model: 750-530/025-000
• Module type: Digital output module
• Number of outputs: 8 digital outputs
• Output voltage: 24 V DC
• Output current per channel: 0.5 A
• Switching type: High-side switching
• Switching frequency: up to approx. 2 kHz
• System supply voltage: 5 V DC (via system bus)
• Connection technology: CAGE CLAMP® spring terminals
• Mounting type: 35 mm DIN rail
• Module width: 12 mm
• Dimensions: approx. 100 × 12 × 67.8 mm
• Operating temperature: -20 °C to +60 °C
• Storage temperature: -40 °C to +85 °C
• Protection rating: IP20
• Isolation voltage: approx. 500 V system/field
• Approvals: CE, UL and international industrial certifications

Reliable Distributed Automation with WAGO I/O

WAGO’s I/O System 750/753 is widely used in distributed control architectures where sensors and actuators are installed close to machinery. The modular design enables flexible configuration of digital, analogue and communication modules for industrial automation systems.

Digital output modules such as the 750-530/025-000 are used to control field devices including contactors, indicator lights, solenoids and relays. Their compact size and robust connection technology make them particularly suitable for space-constrained control cabinets and machine installations. :contentReference

Typical Applications

• Industrial machine control systems.
• PLC-controlled automation panels.
• Factory automation and production lines.
• Controlling solenoids, relays and contactors.
• Process control and distributed I/O systems.
• Packaging, material handling and robotics equipment.

Trusted by Automation Engineers

WAGO I/O modules are trusted worldwide by machine builders and system integrators for reliable, flexible and space-efficient industrial automation solutions.
