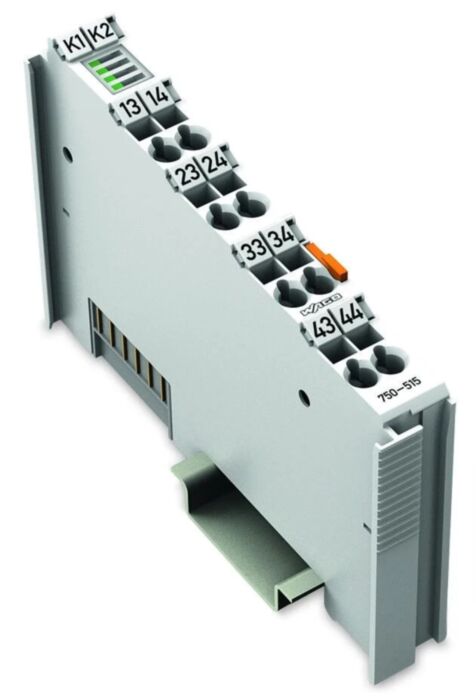

Wago 750-515 4-channel digital output; AC 250 V; 2.0 A; Potential-free; Relay, 4 make contacts

Why Choose the WAGO 750-515 Relay Output Module?

The WAGO 750-515 is a compact 4-channel relay output module designed for the WAGO I/O System 750. It enables PLCs and automation controllers to switch higher-voltage field devices such as contactors, signalling lamps, solenoid valves and motors in distributed industrial control systems.

Each channel provides a potential-free electromechanical relay contact capable of switching loads up to 250 V AC or 30 V DC. The module supports switching currents up to 2 A per channel, allowing safe control of a wide range of industrial loads while maintaining electrical isolation between the control electronics and field circuits.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers as part of the modular WAGO 750 distributed I/O architecture. Its slim DIN rail design and CAGE CLAMP® spring terminal technology provide fast installation and secure wiring inside industrial control cabinets.

Key Advantages

• 4 relay output channels for flexible actuator control.
• Supports AC loads up to 250 V and DC loads up to 30 V.
• Maximum switching current of 2 A per output.
• Potential-free relay contacts provide safe electrical isolation.
• Compatible with WAGO 750 Series distributed I/O systems.
• Fast wiring with CAGE CLAMP® spring terminals.

Key Features

• 4 relay output channels.
• Contact type: normally open (NO) relay contacts.
• Switching voltage: up to 250 V AC / 30 V DC.
• Maximum switching current: 2 A per channel.
• Status LEDs indicate switching state.
• Electromechanical relay contacts for reliable load switching.
• Compatible with WAGO fieldbus couplers and programmable controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-515
• Module type: Relay output module
• Number of outputs: 4 relay outputs
• Contact configuration: normally open relay contacts
• Switching voltage: up to 250 V AC / 30 V DC
• Maximum switching current: 2 A per channel
• Minimum switching current: approx. 10 mA
• Switching power: approx. 500 VA / 60 W (resistive load)
• Switching frequency: approx. 0.5 Hz at nominal load
• Isolation: relay contact isolation between system and field
• System supply voltage: 5 V DC via internal I/O bus
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 24 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Relay Output Control

Relay output modules are widely used in automation systems to control loads that require higher switching voltages or currents than semiconductor outputs can provide. Electromechanical relay contacts isolate the PLC electronics from field circuits, enabling safe switching of AC or DC loads.

The WAGO 750-515 allows industrial controllers to reliably switch devices such as contactors, pumps, signal lamps and actuators. When integrated into the WAGO 750 distributed I/O platform, it provides a flexible and scalable solution for machine automation and industrial process control systems.

Typical Applications

• Switching contactor and relay coils.
• Industrial signalling and indicator lamps.
• Machine automation and equipment control.
• Building automation and HVAC systems.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted by automation engineers and machine builders worldwide for creating flexible distributed control systems in industrial automation environments.
