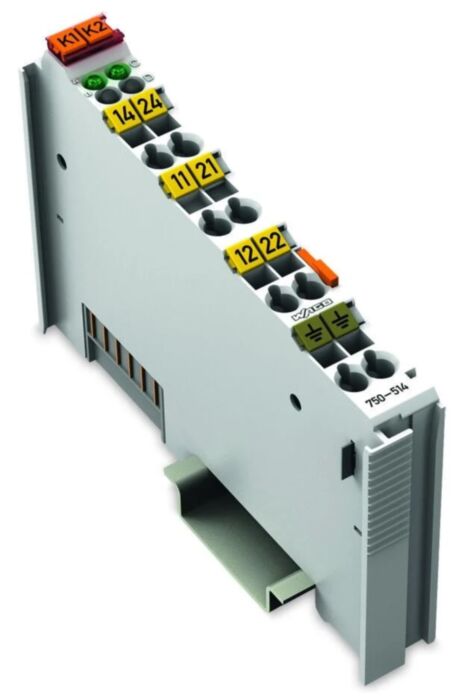

Wago 750-514 2Do, 125 Vac 0.5A Pot-Free Relay2No

Why Choose the WAGO 750-514 Relay Output Module?

The WAGO 750-514 is a dependable 4-channel relay output module designed for the WAGO I/O System 750. It enables PLCs and industrial controllers to switch field devices such as contactors, signalling lamps, motors and relay coils in distributed automation systems.

Each channel provides a potential-free electromechanical relay contact capable of switching loads up to 250 V AC or 30 V DC with a maximum switching current of 2 A. The relay contacts provide reliable electrical isolation between the control electronics and field circuits, allowing safe switching of higher-voltage loads.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers as part of the modular WAGO 750 distributed I/O architecture. Its compact DIN rail housing and CAGE CLAMP® spring terminal technology allow quick installation and secure wiring in industrial control cabinets.

Key Advantages

• 4 relay output channels for flexible load control.
• Supports AC loads up to 250 V and DC loads up to 30 V.
• Maximum switching current of 2 A per output.
• Potential-free relay contacts provide electrical isolation.
• Compatible with WAGO 750 Series distributed I/O systems.
• Quick installation using CAGE CLAMP® spring terminals.

Key Features

• 4 relay output channels.
• Contact type: normally open (NO) relay contacts.
• Switching voltage: up to 250 V AC / 30 V DC.
• Maximum switching current: 2 A per channel.
• Status LEDs indicate switching state.
• Electromechanical relay contacts for reliable load switching.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-514
• Module type: Relay output module
• Number of outputs: 4 relay outputs
• Contact configuration: normally open relay contacts
• Switching voltage: up to 250 V AC / 30 V DC
• Maximum switching current: 2 A per channel
• Minimum switching current: approx. 10 mA
• Switching frequency: approx. 0.5 Hz at nominal load
• Isolation: field/system isolation via relay contacts
• System supply voltage: 5 V DC via internal I/O bus
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 24 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Relay Output Control

Relay output modules are widely used in automation systems to control devices requiring higher switching voltages or currents than semiconductor outputs can provide. These modules electrically isolate the PLC electronics from field devices while allowing safe switching of AC or DC loads.

The WAGO 750-514 enables reliable control of devices such as contactors, signal lamps, pumps and motors. When integrated within the WAGO 750 distributed I/O platform, it provides flexible and scalable automation solutions for modern industrial control systems.

Typical Applications

• Switching contactors and relay coils.
• Industrial signalling and indicator lamps.
• Machine automation systems.
• Building automation and HVAC systems.
• Distributed PLC and remote I/O architectures.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are trusted by automation engineers and machine builders worldwide for creating flexible distributed control systems in industrial automation environments.
