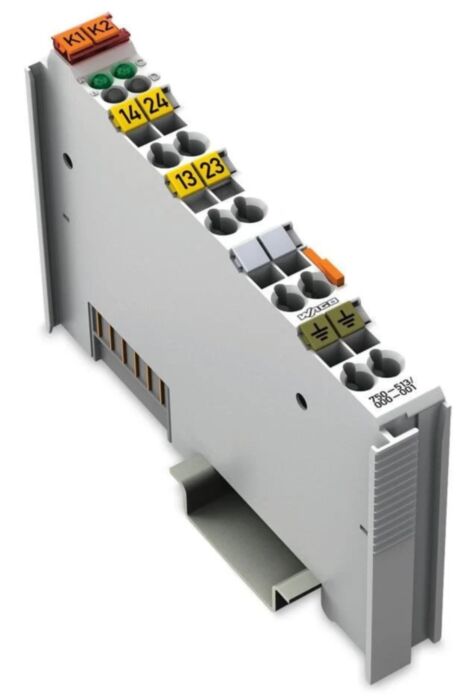

Wago 750-513/000-001 2Do, Ac 250 V 2A Pot-Free Relay2No

Why Choose the WAGO 750-513/000-001 Relay Output Module?

The WAGO 750-513/000-001 is a dependable 2-channel relay output module designed for the WAGO I/O System 750. It allows PLCs and industrial controllers to switch higher-voltage field devices such as contactors, indicator lamps, motors and relay coils within distributed automation systems.

Each channel provides a potential-free electromechanical relay contact capable of switching loads up to 250 V AC or 30 V DC with a maximum switching current of 2 A. These relay contacts provide reliable isolation between the controller electronics and the field circuit, enabling safe switching of external loads in industrial control environments.

The module integrates seamlessly with WAGO fieldbus couplers and programmable controllers as part of the flexible WAGO 750 distributed I/O architecture. Its compact DIN rail housing and CAGE CLAMP® spring terminal technology allow fast installation and secure wiring inside industrial control cabinets.

Key Advantages

• 2 relay output channels for industrial load switching.
• Supports AC loads up to 250 V and DC loads up to 30 V.
• Maximum switching current of 2 A per channel.
• Potential-free relay contacts providing electrical isolation.
• Seamless integration with WAGO 750 Series distributed I/O systems.
• Fast installation using CAGE CLAMP® spring terminals.

Key Features

• 2 digital relay outputs.
• Contact type: normally open (NO) relay contacts.
• Switching voltage: up to 250 V AC / 30 V DC.
• Maximum switching current: 2 A.
• Status LEDs indicate relay switching state.
• Electromechanical relay contacts for reliable switching.
• Compatible with WAGO fieldbus couplers and controllers.

Technical Specifications

• Manufacturer: WAGO
• Series: WAGO I/O System 750
• Model: 750-513/000-001
• Module type: Relay output module
• Number of outputs: 2 relay outputs
• Contact configuration: normally open relay contacts
• Switching voltage: up to 250 V AC / 30 V DC
• Maximum switching current: 2 A
• Minimum switching current: approx. 10 mA
• Switching frequency: approx. 0.5 Hz at nominal load
• Isolation: field/system isolation via relay contacts
• System supply voltage: 5 V DC via internal I/O bus
• Connection technology: CAGE CLAMP® spring terminals
• Mounting: 35 mm DIN rail
• Module width: approx. 12 mm
• Operating temperature: 0 °C to +55 °C
• Ingress protection: IP20

Industrial Relay Output Control

Relay output modules are widely used in industrial automation to control devices requiring higher switching voltages or currents than semiconductor outputs can provide. These modules electrically isolate PLC electronics from field devices while allowing safe switching of AC or DC loads.

The WAGO 750-513/000-001 provides reliable relay switching for loads such as contactor coils, motors, signalling devices and control circuits. When integrated within the WAGO 750 distributed I/O platform, it enables flexible and scalable automation architectures for industrial control systems.

Typical Applications

• Switching contactors and relay coils.
• Control of signalling lamps and indicators.
• Industrial machine automation systems.
• Building automation and HVAC control.
• Distributed PLC and remote I/O installations.

Trusted by Automation Engineers

WAGO 750 Series I/O modules are widely used by automation engineers and system integrators to build reliable distributed control systems across manufacturing, infrastructure and process automation environments.
